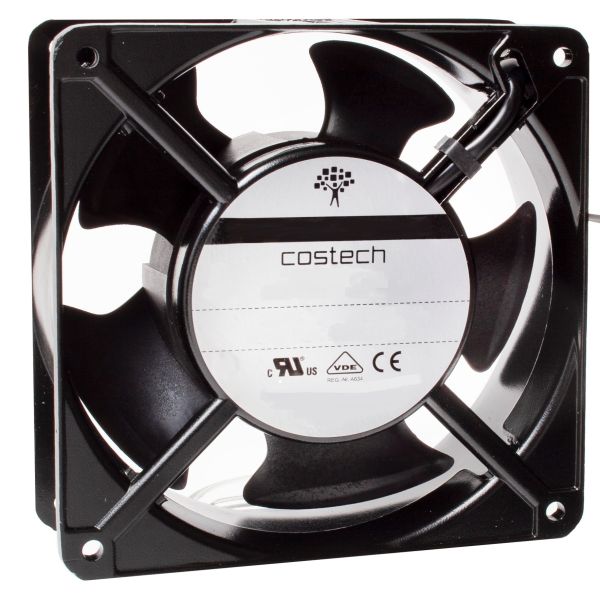

A12B23HWBWF0 AC Axial Compact Fan 120x120x38mm 148m³/h 20W 230V Ball Bearing
SKU | A12B23HWBWF0 |
---|---|
Manufacturer | FANDISEU |
Axial Fan Dimensions | 120x120x38mm |
Max Air Flow (50Hz) | 148(m³/h) |
Airflow Range (50Hz) | 100 to 250m³/h |
Bearing Type | Ball Bearing |
Voltage | 230V.a.c |
Description
Specially designed for electronic cooling inside control panels and enclosures, the AC Axial Compact Fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of A12B23HWBWF0 AC Axial Compact Fan:
- Casing Material: Die-casting aluminium painted black
- Impeller Material: Black thermoplastic UL 94V-0
- Protection degree: IP20, according to EN 60529 standard
- Fixing system: by No 4 M4 screws
- Motor protection: Impedance
- Storage temperature: from -40°C to +70°C
- Rated temperature range: from -10°C to +60°C Lifetime L10 at 40°C: 30,000 h
- Electrical connection: bronze flat terminals (3x0.5 mm)
- Weight: 0.32 kg
- Approvals: UL E223195; VDE 40009963
Dimension | 120x120x38mm |
Rated Voltage | 230Va.c |
Rated Power (50/60Hz) | 20/19 |
Max Air Flow (m3/h) | 148/182 |
Static Pressure (50/60Hz) | 65/80 |
Rated Speed (50/60Hz) (RPM) | 2750/3050 |
Noise (50/60Hz) (dB(A)) | 46.0/49.0 |
Bearing Type | Ball |
