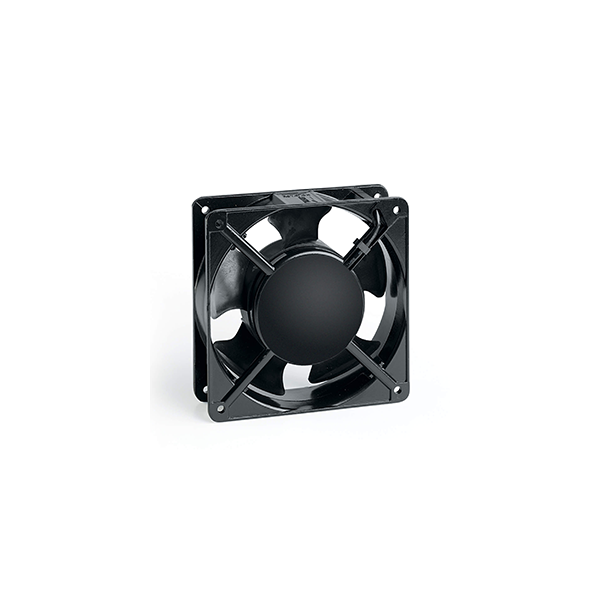

A12B23SWBW00 AC Axial Compact Fan 120x120x38 143m³/h 22W 230V Ball Bearing

Name: A12B23SWBW00 AC Axial Compact Fan 120x120x38 143m³/h 22W 230V Ball Bearing
SKU: A12B23SWBW00
Price: 25.39 GBP
Availability: InStock

SKU

A12B23SWBW00

Buy 40 for £24.12 each and save 5%

£25.39

Quantity

In Stock

View Downloads

SKU	A12B23SWBW00
Manufacturer	FANDISEU
Current Type	AC
Fan Type	AC Compact Axial Fan
ATEX	No
Rated Voltage	230V.a.c
Frequency	50-60Hz
Dimensions	120x120x38mm
Connection Type	Cable
Cable Length	12.2" - 310mm
Max Air Flow (50Hz)	143(m³/h)
Airflow Range (50Hz)	100 to 250m³/h
Bearing Type	Ball Bearing
Speed (RPM)	2700
IP Rating	IP20

Description

The A12B23SWBW00 AC axial compact fan is designed for reliable cooling and ventilation of electrical control panels, cabinets and electronic enclosures. Its compact design makes it ideal where installation space is limited, while its aluminium die-cast casing provides a robust construction for demanding applications.

The AC axial compact fan range offers:

Compact sizes
Ball & Sleeve Bearing options on many lines
Dust and water protection
A wide selection of airflows

Standard Specifications of A12B23SWBW00 AC Axial Compact Fan:

Casing Material: Die-Casting Aluminium
Airflow Direction: Air exhaust over brackets
Frequency: 50/60 Hz
Appliance Class: I
Insulation Class: A
Motor Protection: Impedance Protected
Electrical Connection: Wires
Life Expectancy: 40000 h at 25 °C / 40000 h at 77 °F
Cable Length: 310 mm /12.20 in
Fixing System: Screws
IP Protection Degree: IP20
Operating Temperature: -10÷60 °C / 14÷140 °F
Storage Temperature: -40÷70 °C / -40÷158 °F

Dimension	120x120x38mm
Rated Voltage	230Va.c
Rated Power (50/60Hz)	22/21
Max Air Flow (m3/h)	143/199
Static Pressure (50/60Hz)	62/97
Rated Speed (50/60Hz) (RPM)	2700/3100
Noise (50/60Hz) (dB(A)	47/50
Bearing Type	Ball
