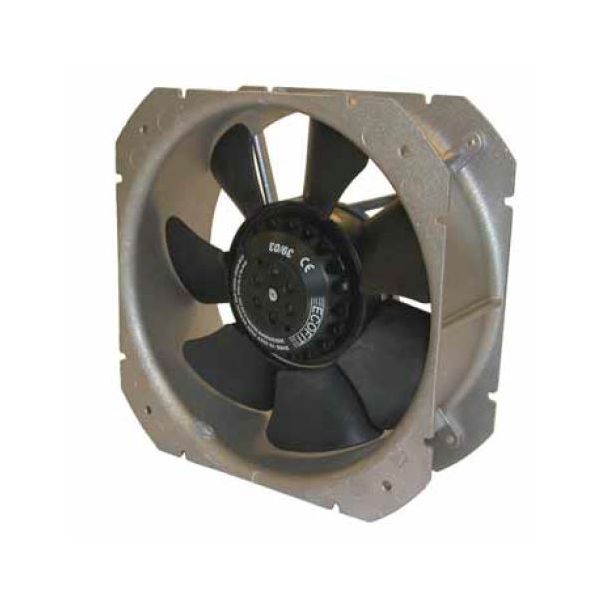

C25S23HKBE00 AC Axial Compact Fan 280x280x80mm 1660m³/h 101W 230V Ball Bearing

Name: C25S23HKBE00 AC Axial Compact Fan 280x280x80mm 1660m³/h 101W 230V Ball Bearing
SKU: C25S23HKBE00
Price: 258.56 GBP
Availability: InStock

SKU

C25S23HKBE00

Buy 8 for £245.63 each and save 5%

£258.56

Quantity

In Stock

View Downloads

SKU	C25S23HKBE00
Manufacturer	FANDISEU
Current Type	AC
Fan Type	AC Compact Axial Fan
ATEX	No
Rated Voltage	230V.a.c
Frequency	50-60Hz
Dimensions	280x280x80mm
Connection Type	Terminal
Cable Length	12.2" - 310mm
Max Air Flow (50Hz)	1660(m³/h)
Airflow Range (50Hz)	>501m³/h
Bearing Type	Ball Bearing
Speed (RPM)	2725
IP Rating	IP20

Description

Specially designed for control panels and enclosures, the AC axial compact fan range offers:

Compact sizes
Ball & Sleeve Bearing options on many lines
Dust and water protection
A wide selection of airflows

Standard specifications of the C25S23HKBE00 EC axial compact fan:

Casing Material: aluminium UNI5076
Impeller Material: casing of aluminium alloy die casting and black painted steel
Protection degree: IP20, according to EN 60529 standard
Fixing system: No 4 holes Ø5.4
Motor protection: thermally
Rated temperature range: from -20°C to +70°C
Lifetime L10 at 25°C: from 53,000 to 80,000 h
Weight: 2.8 kg
Approvals: CE

Dimension	280x280x80
Rated Voltage	230 Va.c
Rated Power (50/60Hz)	104/135
Max Air Flow (m3/h)	1660/1840
Static Pressure (50/60Hz)	250/220
Rated Speed (50/60Hz) (RPM)	2725/3105
Noise (50/60Hz) (dB(A)	72/75
Bearing Type	Ball
