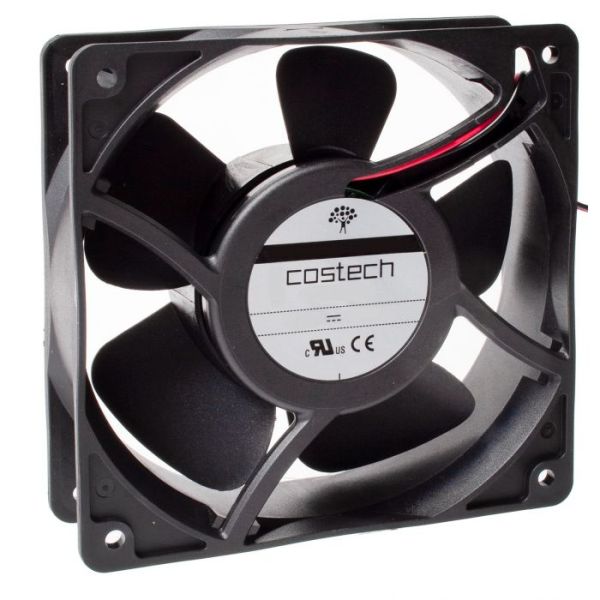

D04E05HWHT00 DC Axial Compact Fan 40x40x10mm 10m³/h 2.16W 24V High Speed Hypro Bearing

D04E05HWHT00 DC Axial Compact Fan 40x40x10mm 10m³/h 2.16W 24V High Speed Hypro Bearing

SKU
D04E05HWHT00
Buy 50 for £8.63 each and save 5%
tick In Stock
View Downloads chevron-right
Manufacturer FANDISEU
Axial Fan Dimensions 40x40x10mm
Max Air Flow (50Hz) 10(m³/h)
Airflow Range (50Hz) < 100m³/h
Bearing Type Hypro Bearing
Voltage 24Vd.c.

Description

Specially designed for control panels and enclosures, the AC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of D04E05HWST00 EC Axial Compact Fan:

  • Casing Material: Glass fibre reinforced plastic
  • Impeller Material: Glass fibre reinforced plastic
  • Motor protection: Impedance
  • Rated temperature range: from -20°C to +70°C Lifetime L10 at 40°C: 70,000 h
  • Electrical connection: 2 leads  AWG26 UL1007 30mm long
  • Weight: 0.17 kg
  • Approvals: CE



Dimension 40x40x10
Rated Voltage 24v DC
Rated Power (W) 2.16
Max Air Flow (m3/h) 10
Static Pressure (Pa) 25
Rated Speed (RPM) 6000
Noise  (dB(A) 30.5
Bearing Type Hypro Bearing
