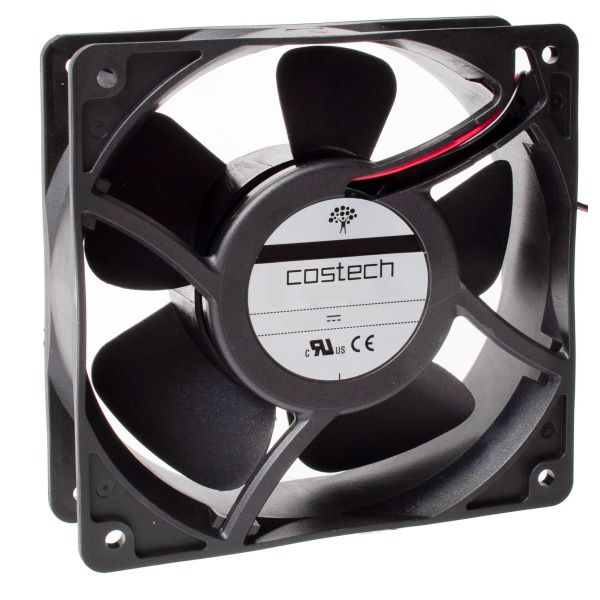

D06A05HWBA00 DC Axial Compact Fan 60x60x25mm 40m³/h 3.6W 24V Ball Bearing
SKU
D06A05HWBA00
Buy 60 for
£15.57
each and save 5%
£16.39
In Stock
| SKU | D06A05HWBA00 |
|---|---|
| Manufacturer | FANDISEU |
| Current Type | DC |
| Fan Type | DC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 24V.d.c. |
| Frequency | 50Hz |
| Dimensions | 60x60x25mm |
| Connection Type | Cable |
| Cable Length | 11.8" - 300mm |
| Max Air Flow (50Hz) | 40(m³/h) |
| Airflow Range (50Hz) | < 100m³/h |
| Bearing Type | Ball Bearing |
| Speed (RPM) | 4500 |
| IP Rating | IP20 |
Description
Specially designed for control panels and enclosures, the DC Axial Compact Fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of D06A05HWBA00 DC Axial Compact Fan:
- Casing material: Black fibreglass reiforced plastic (PBT) UL 94V-0
- Impeller material: Black fibreglass reiforced plastic (PBT) UL 94V-0
- Protection degree: IP20, according to EN 60529 standard
- Fixing system: by No. 4 M4 screws
- Storage temperature: from -40°C to +70°C
- Rated temperature range: from -10°C to +70°C Lifetime L10 at 40°C: Sleeve 22,000 h ; Ball 70,000 h
- Electrical connection: 2 leads 24AWG UL 1007, 300 mm long
- Weight: 68 g
| Dimension | 60x60x25 |
| Rated Voltage | 24Vd.c |
| Rated Power (W) | 3.4 |
| Max Air Flow (m3/h) | 40 |
| Static Pressure (Pa) | 20 |
| Rated Speed (RPM) | 4500 |
| Noise (dB(A)) | 40.5 |
| Bearing Type | Ball |
