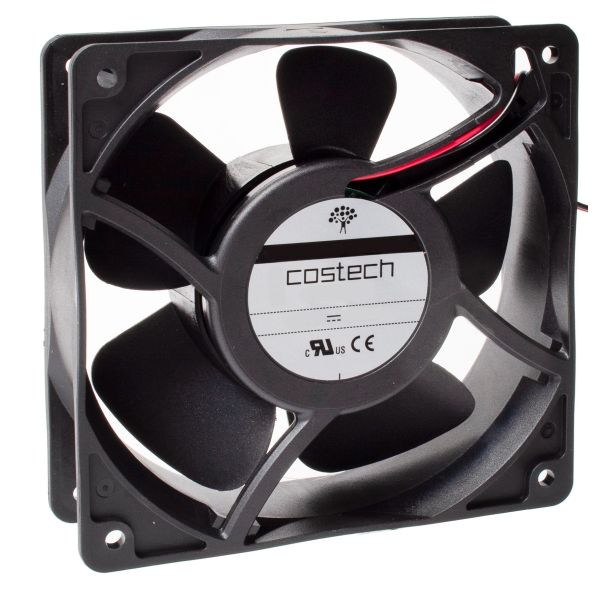

D06A05HWSA0 DC Axial Compact Fan 60x60x25mm 42m³/h 3.6W 24V Sleeve Bearing

D06A05HWSA0 DC Axial Compact Fan 60x60x25mm 42m³/h 3.6W 24V Sleeve Bearing

SKU
D06A05HWSA0
Buy 60 for £10.49 each and save 5%
tick In Stock
View Downloads chevron-right
Manufacturer FANDISEU
Axial Fan Dimensions 60x60x25mm
Max Air Flow (50Hz) 42(m³/h)
Airflow Range (50Hz) < 100m³/h
Bearing Type Sleeve Bearing
Voltage 24Vd.c.

Description

Specially designed for control panels and enclosures, the DC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of D06A05HWSA0 DC Axial Compact Fan:

  • Casing Material: Black warnished aluminum
  • Impeller Material: Metal
  • Protection degree: IP20, according to EN 60529 standard
  • Fixing system: by No 2 M4 screws
  • Insulation Class: F
  • Motor protection: thermal
  • Storage temperature: from -40°C to +90°C
  • Rated temperature range: from -40°C to +90°C Lifetime L10 at 40°C: 40,000 h
  • Electrical connection: 2 leads 22AWG UL 3239, 350 mm long
  • Weight: 1.1 kg
  • Approvals: UL E223195



Dimension 60x60x25
Rated Voltage 24Vd.c
Rated Power (50/60Hz) 3.6
Max Air Flow (m3/h) 42
Static Pressure (50/60Hz) 50
Rated Speed (50/60Hz) (RPM) 4500
Noise (50/60Hz) (dB(A)) 35.2
Bearing Type Sleeve
