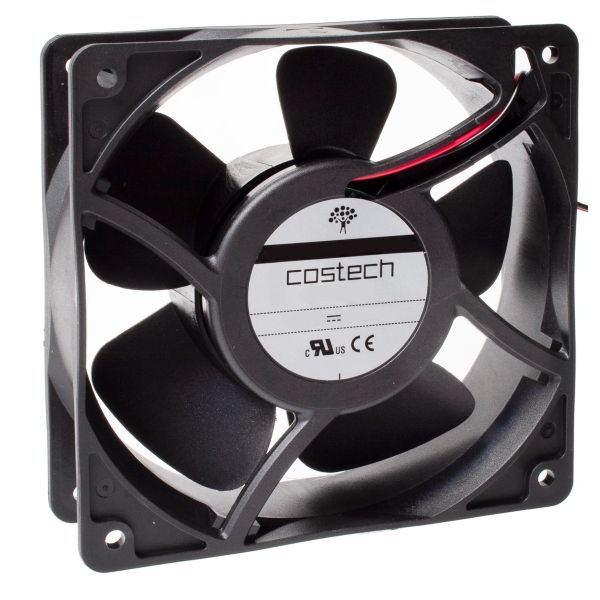

D08A05HWBA00 DC Axial Compact Fan 80x80x25mm 68m³/h 3.8W 24V Ball Bearing
SKU
D08A05HWBA00
Buy 50 for
£16.45
each and save 5%
£17.32
In Stock
| SKU | D08A05HWBA00 |
|---|---|
| Manufacturer | FANDISEU |
| Current Type | DC |
| Fan Type | DC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 24V.d.c. |
| Frequency | 50Hz |
| Dimensions | 80x80x25mm |
| Connection Type | Cable |
| Cable Length | 11.8" - 300mm |
| Max Air Flow (50Hz) | 68(m³/h) |
| Airflow Range (50Hz) | < 100m³/h |
| Bearing Type | Ball Bearing |
| Speed (RPM) | 3000 |
| IP Rating | IP20 |
Description
Specially designed for control panels and enclosures, the DC Axial Compact Fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of D08A05HWBA00 DC Axial Compact Fan:
- Casing material: Black fibreglass reiforced plastic (PBT) UL 94V-0
- Impeller material: Black fibreglass reiforced plastic (PBT) UL 94V-0
- Protection degree: Impendance
- Storage temperature: from -10°C to +60°C
- Rated temperature range: from -10°C to +60°C Lifetime L10 at 40°C: 70,000
- Weight: 84 g
| Dimension | 80x80x25 |
| Rated Voltage | 24Vd.c |
| Rated Power (W) | 3.8 |
| Max Air Flow (m3/h) | 68 |
| Static Pressure (Pa) | 41 |
| Rated Speed (RPM) | 3100 |
| Noise (dB(A)) | 34.4 |
| Bearing Type | Ball |
