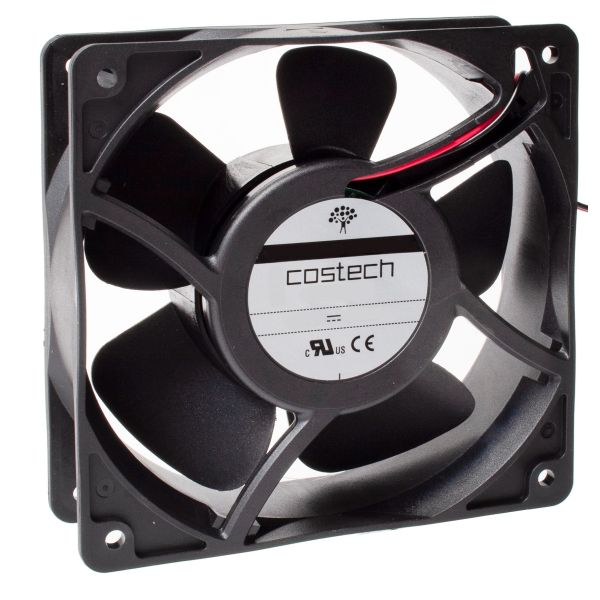

D12A05HWBZ00 DC Axial Compact Fan 120x120x25mm 149m³/h 4.6W 24V Ball Bearing

D12A05HWBZ00 DC Axial Compact Fan 120x120x25mm 149m³/h 4.6W 24V Ball Bearing

Buy 60 for £24.84 each and save 5%
tick In Stock
View Downloads chevron-right
Manufacturer FANDISEU
Axial Fan Dimensions 120x120x25mm
Max Air Flow (50Hz) 149(m³/h)
Airflow Range (50Hz) 100 to 250m³/h
Bearing Type Ball Bearing
Voltage 24Vd.c.


Specially designed for control panels and enclosures, the DC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of D12A05HWBZ00 DC Axial Compact Fan:

  • Casing material: Black fibreglass reinforced plastic (PBT) UL 94V-0
  • Impeller material:Black fibreglass reinforced plastic (PBT) UL 94V-0
  • Protection degree: IP20, according to EN 60529 standard
  • Fixing system: by No. 4 M4 screws
  • Motor protection: IC
  • Storage temperature: from -40°C to +70°C from -10°C to +70°C (ball bearing); from -10°C to +60°C (sleeve bearing)
  • Rated temperature range: 70,000 h at 40°C and 40,000 h at max temperature (ball bearing); 50,000 h at 40°C and 35,000 h at max temperature (sleeve bearing) Lifetime L10 at 40°C:
  • Electrical connection: 2 leads 24AWG UL 1007, 300 mm long.
  • Weight: 156g
  • Approvals: UL E223195


Dimension 120x120x25
Rated Voltage 24 Vd.c.
Rated Power (W) 4.6
Max Air Flow (m3/h) 149
Static Pressure (Pa) 33
Rated Speed (RPM) 2200
Noise 39.1
Bearing Type Ball
