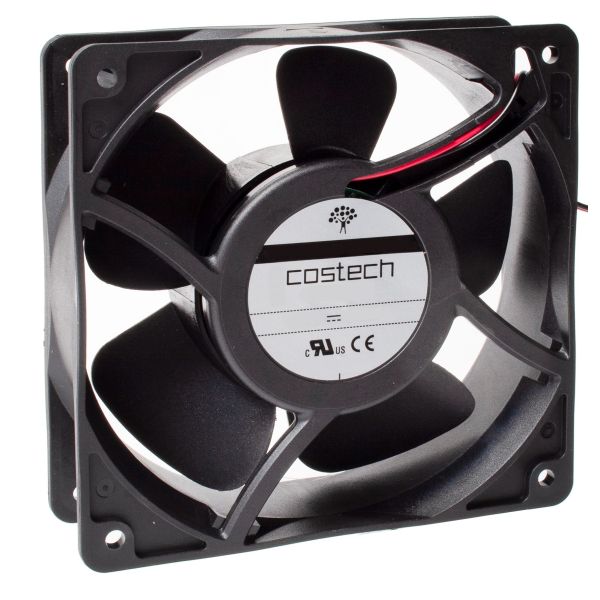

D12B05HWBZ00 DC Axial Compact Fan 120x120x38 179m³/h 7.7W 24V Ball Bearing

D12B05HWBZ00 DC Axial Compact Fan 120x120x38 179m³/h 7.7W 24V Ball Bearing

SKU
D12B05HWBZ00
Buy 40 for £30.14 each and save 5%
In Stock
View Downloads
SKU D12B05HWBZ00
Manufacturer FANDISEU
Axial Fan Dimensions 120x120x38mm
Max Air Flow (50Hz) 179(m³/h)
Airflow Range (50Hz) 100 to 250m³/h
Bearing Type Ball Bearing
Voltage 24Vd.c.

Description

Specially designed for control panels and enclosures, the DC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of D12B05HWBZ00 DC Axial Compact Fan:

  • Casing material: Black fibreglass reinforced plastic (PBT) UL 94V-0
  • Impeller material:Black fibreglass reinforced plastic (PBT) UL 94V-0
  • Protection degree: IP55, according to EN 60529 standard
  • Fixing system: by No. 4 M4 screws
  • Motor protection: Impendance
  • Storage temperature: from -40°C to +70°C
  • Rated temperature range: -10°C to +70°C
  • Lifetime L10 at 40°C: 70,000
  • Electrical connection: 2 leads 24AWG UL 1007, 300 mm long.
  • Weight: 156g
  • Approvals: UL E223195



Dimension 120x120x38mm
Rated Voltage 24 Vd.c.
Rated Power (W) 7.7
Max Air Flow (m3/h) 179
Static Pressure (Pa) 66
Rated Speed (RPM) 2800
Noise 46.7
Bearing Type Ball
