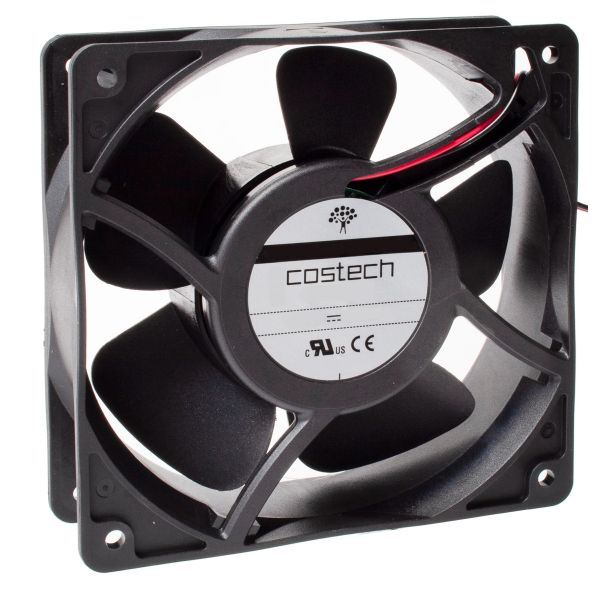

D12B05SWBZ00 DC Axial Compact Fan 120x120x38mm 204m³/h 9.4W 24V Ball Bearing
SKU
D12B05SWBZ00
Buy 40 for
£34.00
each and save 5%
£35.79
| SKU | D12B05SWBZ00 |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Manufacturer | FANDISEU |
| Current Type | DC |
| Fan Type | DC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 24V.d.c. |
| Frequency | 50Hz |
| Dimensions | 120x120x38mm |
| Connection Type | Cable |
| Cable Length | 11.8" - 300mm |
| Max Air Flow (50Hz) | 213(m³/h) |
| Airflow Range (50Hz) | 100 to 250m³/h |
| Bearing Type | Ball Bearing |
| Speed (RPM) | 3200 |
| IP Rating | IP52 |
Description
Specially designed for control panels and enclosures, the DC axial compact fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of D12B05SWBZ00 DC Axial Compact Fan:
- Casing material: Black fibreglass reinforced plastic (PBT) UL 94V-0
- Impeller material:Black fibreglass reinforced plastic (PBT) UL 94V-0
- Protection degree: IP20, according to EN 60529 standard
- Fixing system: by No. 4 M4 screws
- Motor protection: IC
- Storage temperature: from -40°C to +70°C from -10°C to +70°C (ball bearing); from -10°C to +60°C (sleeve bearing)
- Rated temperature range: 70,000 h at 40°C and 40,000 h at max temperature (ball bearing); 50,000 h at 40°C and 35,000 h at max temperature (sleeve bearing) Lifetime L10 at 40°C:
- Electrical connection: 2 leads 24AWG UL 1007, 300 mm long.
- Weight: 156g
- Approvals: UL E223195
| Dimension | 120x120x38 |
| Rated Voltage | 24 Vd.c. |
| Rated Power (W) | 9.6 |
| Max Air Flow (m3/h) | 204 |
| Static Pressure (Pa) | 83 |
| Rated Speed (RPM) | 3200 |
| Noise | 48 |
| Bearing Type | Ball |
