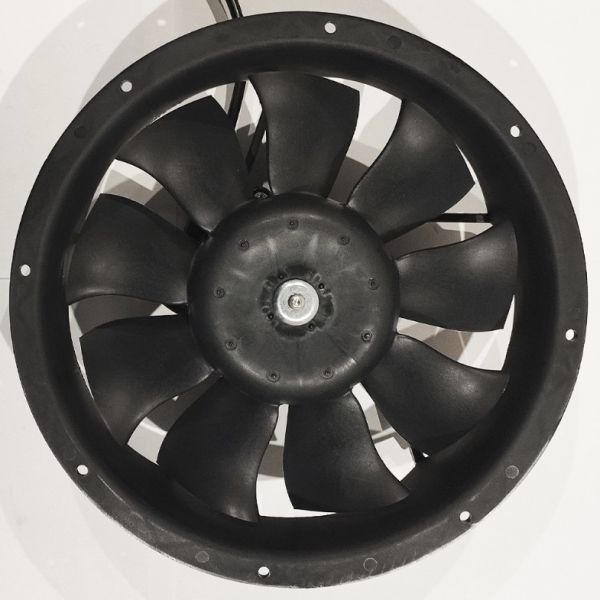

ECF2-8AXD11 Aofrio Wellington fan packs combine highly trusted ECR2 motors, expertly crafted blades, and sleek, low-profile shrouds to ensure dependable, ultra-quiet, and energy-efficient airflow, perfectly designed for the demands of commercial refrigeration applications.

ECF2 Aofrio Wellington fanpacks offer:

• Quiet operation - as low as 36.5 dBA
• High efficiency - up to 70%
• Up to 10x more reliablIty
• Universal voltage (70-246V) - use one SKU anywhere
• 57:1 SKU reduction - reduces inventory and boosts profits

OEM Options:

• Preprogrammed or factory/field programmable speeds
• Realtime continuously variable speed control over third mains wire (no extra cables required)
• Custom cable and plug options
• Metric, imperial, or custom hardware
• 3 speed, reversible, or timed-reverse options

Standard Specifications:

• Input voltage range 85-264V, 50-60Hz (all models)
• Output power range 0-13W
• Speed range 300-1800 RPM
• Max. input power 20.5W
• Max. input current 0.10A (@230V), 0.20A (@115V)
• Max power factor 0.95
• EMC protection 4000V (per EN61000-6-2)
• Insulation class Class A (105°C)
• Electronic protection Locked rotor and automatic thermal de-rating also included
• Refrigerant compatibility HFC, CO2 and hydrocarbon (per IEC 60335-2-89 Annex BB)
• IP rating IP67
• Operating temp. range -30°C to +50°C (-22°F to +122°F)
• Storage temp. range -40°C to +80°C (-40°F to +176°F)
• Weight 0.86kg (1.9lb)

We are the official supplier of official Fosters refrigeration spares including EC fans for evaporators and condensors, ATEX compact axial fans and ATEX fan packs.
