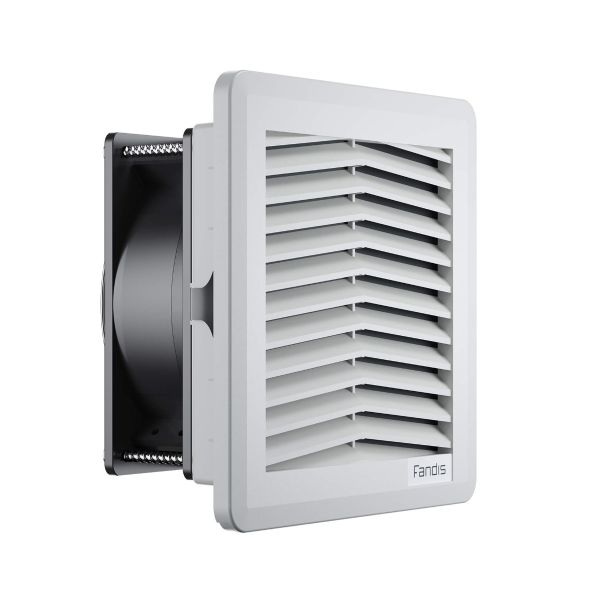

FF12A230UF Fandis Filter Fan Unit 230V AC 45m³/h Standard Airflow. Fits Cut Out 124x124mm. RAL 7035

The Fandis FF12A230UF is a compact filter fan unit designed to provide reliable cooling and ventilation for electrical control panels, cabinets and enclosures. Operating from a 230V AC supply, it delivers airflow up to 45 m³/h at 50Hz, helping to remove excess heat and maintain suitable operating conditions for sensitive electronic equipment.

Designed for easy installation, it features a screwless electrical connection and a fast, tool-free mounting system, with a panel cut-out size of 124x124mm. The Fandis FF filter fan series offers a wide range of configurations for indoor and outdoor applications.

Technical data

• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Airflow Direction Reverse
• Electrical Connection Wires
• Life Expectancy, 50000 h at 20 °C, 50000 h at 68 °F
• Wires Section 22 AWG
• Filter Class ISO coarse 55% ISO 16890
• Filter Class G3 EN 779
• Filter Material thermo-linked progressive structure synthetic fibre

Dimensions of FF12A230UF: 150mm (w) x 150mm (h) x 66mm (d)

EMC versions are available on request.
