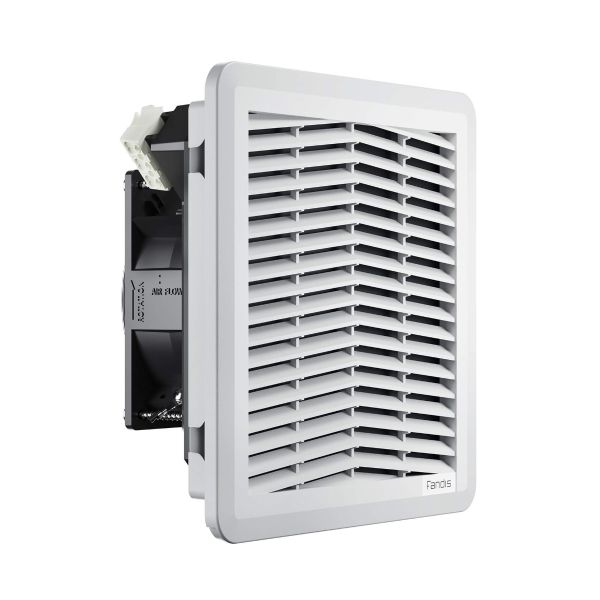

FF13PD24UNR Fandis Filter Fan Unit 24V DC 114m³/h Reverse Airflow. Fits Cut Out 177X177mm. RAL 7035

SKU
FF13PD24UNR
Buy 20 for £91.74 each and save 5%
  £96.57
tick In Stock
View Downloads chevron-right
SKU FF13PD24UNR
Manufacturer FANDISEU
Rated Voltage 24V.d.c.
Cut Out Size 177x177mm
EMC Shielded No
Airflow Range (50Hz) 100 to 250m³/h
Max Air Flow (50Hz) 114(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.



Technical data


  • Airflow with Exhaust Filter 96 m³/h
  • Rated Current 0.355 A
  • Operating Voltage 10-26.7 V d.c.
  • Motor Protection Electronically Protected
  • Mounting Wall Thickness 1.3-3.2 mm
  • Spare Parts Filter Media M13FPF-EU3
  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Airflow Direction Reverse
  • Electrical Connection Screwless Terminal Block
  • Life Expectancy 100000 h at 25 °C
  • Wires Section 20-14 AWG
  • Wires Section 0.75-2.5 mm²
  • Fan Noise 42 dB(A)
  • Filter Class ISO coarse 55% ISO 16890
  • Filter Class G3 EN 779
  • Filter Material thermo-linked progressive structure synthetic fibre
  • IP Protection Degree IP54
  • Operating Temperature -10÷55 °C
  • Storage Temperature -40÷70 °C
  • UL Ambient Temperature 55 °C


    • Dimensions of FF13PD24UNR:

    Standard Filter Fan Size: 204mm (w) x 204mm (h) x 87mm (d)



    Rated Voltage 24Vd.c
    Rated Power (50/60Hz)(W) 8.5
    Max Air Flow (m3/h) 114
    Static Pressure (50/60Hz)(Pa) 87
    Noise (50/60Hz) (dB(A)) 42





    EMC versions are available on request.
