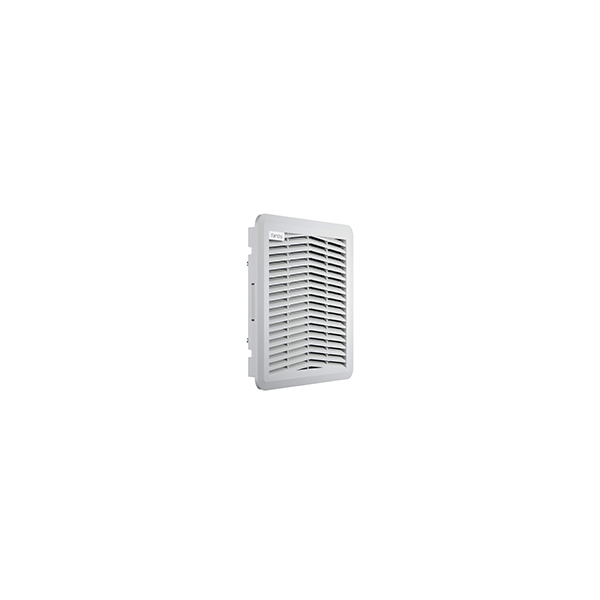

FPF13KUG-100 Fandis Exhaust Filter to Fit Cut Out 177x177mm. RAL 7035

FPF13KUG-100 Fandis Exhaust Filter to Fit Cut Out 177x177mm. RAL 7035

SKU
FPF13KUG-100
Buy 22 for £17.56 each and save 5%
View Alternative Product
View Downloads chevron-right
Manufacturer FANDISEU
Cut Out Size 177x177mm
EMC Shielded No
IP Rating IP54

Description

Specially designed for control panels and enclosures, the FPF range of exhaust filter units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gasketts for dust and water protection

Standard Specifications of Exhaust Filter:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media available here
  • IP54 rated
  • CSA approved
  • Also available as full unit with supplied fan

Dimensions of FPF13KUG-100 Exhaust Filter:



FPF13 Exhaust Filter

The FPF13KUG exhaust filter facilitates effective use of a filter fan unit when either delivering or exhausting air from a cabinet. Click fit mount comes as standard throughout the range, which permits fast mounting thanks to its elastic hooks, this means no need for tools or gadgets to fit. The plastic parts are made of ABS and PC alloy. The FPF13KUG comes with integrated sealing gaskets in polyurethane foam for dust and water protection making it IP54 and is compact with a plate thickness range of 1.5mm. The the filter inlet comes in G3 filter media as standard but can be upgraded to G4 upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The exhaust filter/inlet can be fitted for a low external profile, or if more space inside the enclosure is needed an adaptor can be used increasing the internal space by extending the fan filter units external profile. The FPF13KUG comes as standard in colour RAL 7035, but is available in 4 other colours on request. The enclosure exhaust is UL approved as well as CSA approved. IP55, 3R, Type1 and EMC versions are also available on request. The Exhaust / inlet is also available as a full unit with a supplied fan from the range picked to meet requirements.
