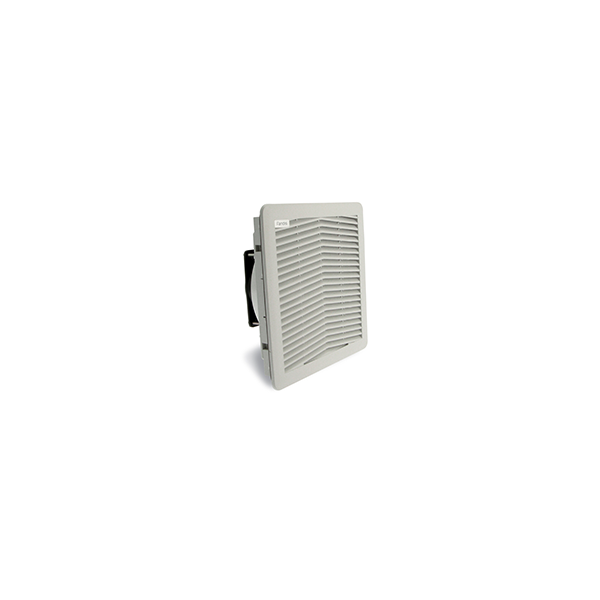

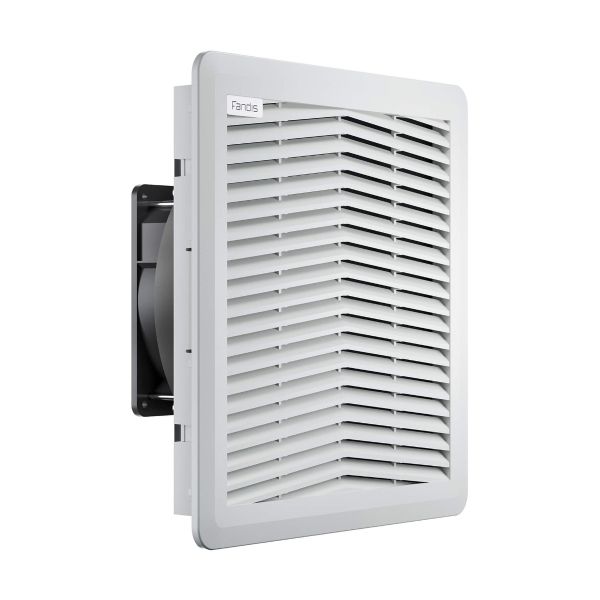

FPF15KPRD24BR-110 Fan Filter Unit 24V DC 145m³/h Reverse Airflow. Fits Cut Out 223x223mm. RAL 7035

The FPF15KPRD24BR-110 Fandis filter fan unit is a compact, high performance cooling solution designed to maintain safe operating temperatures within electrical control panels and enclosures. By delivering efficient airflow and effective heat dissipation, it helps protect sensitive electronic components, improving system reliability and extending equipment service life.

The Fandis range of FPF filter fan units is designed for reliable performance and easy installation, featuring:

• Compact dimensions with a low profile external design
• Quick and simple mounting using plastic elastic hooks
• Integrated sealing gaskets for enhanced dust and water protection

Standard Specifications of the FPF15KPRD24BR-110:

• Mounting without screws in square openings, tolerance range of 1.5mm
• Possible fixing with V-shaped head screws (not supplied)
• Standard RAL 7035 colour
• Washable filter media supplied
• IP54 rated
• CSA approved
• Shielded ball bearing fans
• Suitable for operation at 60Hz
• Temperature Range =10 to +50

Dimensions of FPF15KPRD24BR-110: 250mm (w) x 250mm (h) x 113mm (d)

We recommend using FPF15 filter fans alongside the FPF15KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
