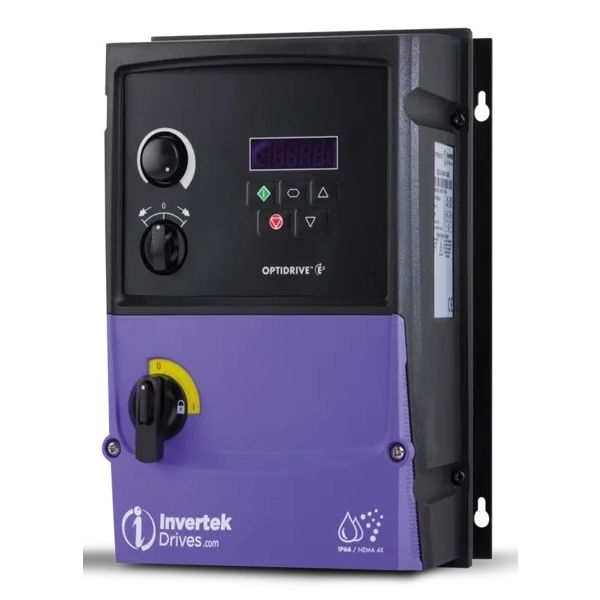

ODE-3-220105-1F4B-01 Invertek E3 Optidrive Variable Frequency Drive

Manufacturer Part Code: ODE-3-220105-1F4B-01

Our Part Code: RF11-0110H

The ODE-3-220105-1F4B-01 Invertek E3 Optidrive is a compact, energy efficient inverter drive designed for simple and precise speed control of single phase motors in fan and ventilation applications. It offers easy installation, user friendly setup, and reliable performance, helping reduce energy consumption while ensuring smooth and consistent motor operation.

Input Ratings:

• Supply Voltage: 200-240V
• Input Phases: 1
• Supply Current Continuous: 14A
• Supply Fuse or MCB (Type B): 20A


Output Ratings:

• Motor Output Rating: 1.1kW (1.5 HP)
• Output Voltage: 0-Supply Voltage
• Output Current: 10.5A


Cable Information:

• Max Supply Cable Size: 8mm² (0.01 sq in)
• Max Motor Cable Size: 8mm² (0.01 sq in)
• Max Motor Cable Length: 100m (328ft)


Factory Build Options:

• EMC Filter: Internal EMC Filter
• Brake Transistor: Internal Braking Transistor
• Enclosure: IP66 Outdoor Switched
• Display: LED


Dimensions:

• Size: 2
• Height: 257mm (10.12in)
• Width: 188mm (7.4in)
• Depth: 182mm (7.17in)
• Weight: 3.5kg (7.72lbs)
• Fixings: 4 x M4
