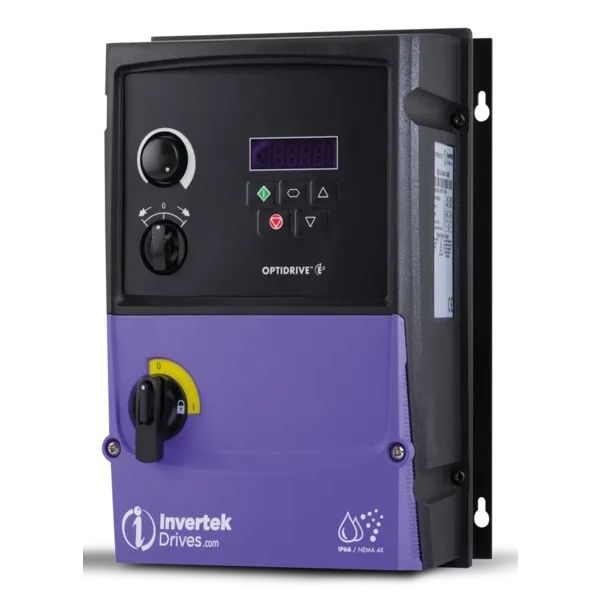

ODE-3-340180-3F4B E3 Invertek E3 Optidrive Variable Frequency Drive

Manufacturer Part Code: ODE-3-340180-3F4B

Our Part Code: RF33-0750H

The ODE-3-340180-3F4B Invertek E3 Optidrive is a compact, energy efficient inverter drive designed for simple and precise speed control of three phase motors in fan and ventilation applications. It offers easy installation, user friendly setup, and reliable performance, helping reduce energy consumption while ensuring smooth and consistent motor operation.

Input Ratings:

• Supply Voltage: 380-480V
• Input Phases: 3
• Supply Current Continuous: 21.2A
• Supply Fuse or MCB (Type B): 32A


Output Ratings:

• Motor Output Rating: 7.5kW
• Output Voltage: 0-Supply Voltage
• Output Current: 18A


Cable Information:

• Max Supply Cable Size: 8mm² (0.01 sq in)
• Max Motor Cable Size: 8mm² (0.01 sq in)
• Max Motor Cable Length: 100m (328ft)


Factory Build Options:

• EMC Filter: Internal EMC Filter
• Brake Transistor: Internal Brake Transistor
• Enclosure: IP66 Outdoor Switched
• Display: LED


Dimensions:

• Size: 3
• Height: 310mm
• Width: 211mm
• Depth: 235mm
• Weight: 6.6kg
• Fixings: 4 x M4
