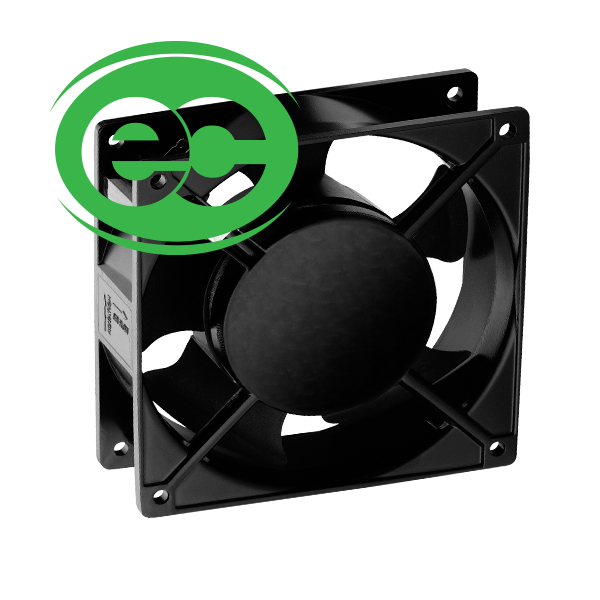

PAR001 EC Axial Compact Fan 120x120x38mm 178m³/h 6.5W 240V Ball Bearing
SKU
PAR001
Buy 960 for
£15.06
each and save 5%
£15.85
In Stock
| SKU | PAR001 |
|---|---|
| Manufacturer | AXAIRREF |
| Current Type | EC |
| Fan Type | EC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 220-240V.a.c |
| Frequency | 50-60Hz |
| Dimensions | 120x120x38mm |
| Connection Type | Cable |
| Cable Length | 11.8" - 300mm |
| Max Air Flow (50Hz) | 178(m³/h) |
| Airflow Range (50Hz) | 100 to 250m³/h |
| Bearing Type | Ball Bearing |
| Speed (RPM) | 2750 |
| IP Rating | IP20 |
Description
Specially designed for control panels and enclosures, the EC Axial Compact Fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of PAR001 EC Axial Compact Fan:
- Motor Design: ECM
- Casing Material: Aliminium Die-cast
- Impeller Material: Thermoplastic in black
- Dielectric Strength: 1500 VAC for 1 minute
- Insulation: Class B
- Insulation Resistance: Above 10M Ohms at 500VDC
- Protection degree: IP20, according to EN 60529 standard
- Fixing system: by No 4 M4 screws
- Motor protection: Via Electronics
- Storage temperature: from -20°C to +70°C
- Rated temperature range: from -20°C to +70°C Lifetime L10 at 25°C: 50,000 h
- Electrical connection: Lead Wire
- Approvals: CE
| Dimension | 120x120x38 |
| Voltage | 220/240Va.c |
| Input Power (W) | 6.5 |
| Max Air Flow (m3/h) | 178 |
| Static Pressure (50/60Hz) | 7.4 |
| Rated Speed (50/60Hz) (RPM) | 2750 |
| Noise (50/60Hz) (dB(A)) | 43 |
| Bearing Type | Ball |
