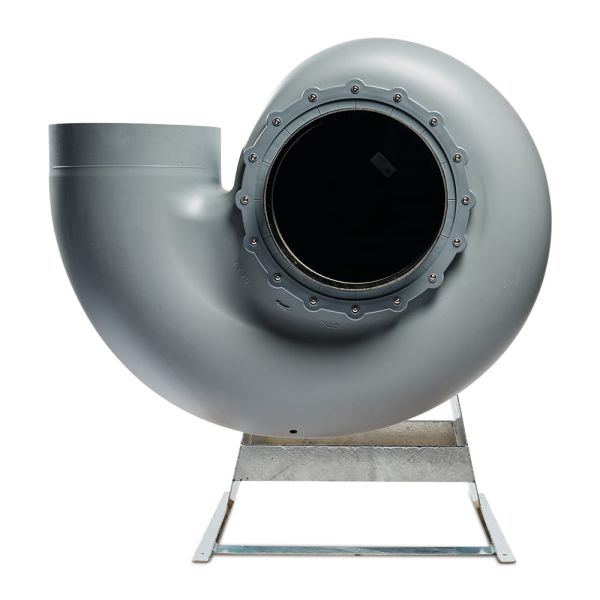

S35 SEAT Corrosion Resistant Polypropylene Fan
SKU
S35
| SKU | S35 |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Manufacturer | SEAT |
| Series | S |
| Model | S35 |
| Flange / Motor Plate Colour | Grey |
| ATEX | No |
| Pressure Capability | Low - Medium |
| Discharge Size | ø315 mm |
| Airflow Range (50Hz) | 1500 to 9000m³/h |
| Total Pressure (Pa) | 200-1500Pa |
Description
The S35 SEAT corrosion resistant fan is designed to deliver high airflow, under low to medium pressures in industrial fume extraction.
Key Features:
- Single piece moulded UV-treated, high density polypropylene housing.
- Industry standard round spigot sizes.
- High airflow performance at low to medium pressure.
- Multiple motor configurations: including single phase (1~) and three phase (3~).
- Handings & orientation options: LG0, LG45, LG90, LG225, LG270, LG315, RD0, RD45, RD90, RD135, RD225, RD270, RD315. For LG 180 & RD180 we suggest discussing with our team.
- Inverter compatibility: We recommended soft starts and speed control on larger fans.
- Temperature rated up to 60°C.
- ATEX certified carbon loaded polypropylene variant for use in Zone 2 hazardous areas available.
Performance Data
For core performance please refer to the red lines on the curves below.
Blue dashed lines represent 60Hz or frequency variation using a method of speed control. Please discuss this with us.
Product Dimensions (mm)
S35 when using a galvanised metal pedestal:
| Diameter | A | B | C | E | F | G | H | L | M | Y | Y1 | Z | Z1 |
| 315 | 370 | 570 | 450 | 130 | 170 | 255 | 60 | 150 | 170 | 650 | 545 | 600 | 570 |
| Motor Size | Motor | X | X1 | X2 | P |
| 2.2kW, 4kW & 5.5kW | '112' frame | 550 | 112 | 662 | 724 |
| 7.5kW | '132' frame | 550 | 132 | 682 | 822 |
S35 when using a weather proof polypropylene box pedestal:
| Diameter | A | B | C | E | F | G | H | L | Q |
| 315 | 370 | 570 | 450 | 130 | 170 | 255 | 60 | 150 | 180 |
| Motor Size | Motor | R | U | U1 | V | V1 | W | W1 |
| 4kW, 5.5kW & 2.2kW | '112' frame | 880 | 122 | 578 | 500 | 400 | 585 | 480 |
| 7.5kW | '132' frame | 822 | 122 | 578 | 500 | 400 | 585 | 480 |
Electrical Data
| Model | Motor | 3~ |
Weight (Kg) Fan with Box Pedestal |
Weight (Kg) Fan with Metal Pedestal |
||||
| Supply | Full Load | Start | 3~ Only | 3~ Only | ||||
| S35/6 | 2.2kW-930/min | 400/3/50 | 5.3A | 31.5A | 60 | 55 | ||
| S35/4L | 4kW-1450/min | 400/3/50 | 8A | 62A | 65 | 65 | ||
| S35/4M | 5.5kW-1450/min | 400/3/50 | 11.4A | 94A | 65 | 65 | ||
| S35/4H | 7.5kW-1450/min | 400/3/50 | 14.7A | 109A | 102 | 80 | ||
Sound Data:
| Speed | Qv | SP | LwA | LPA* | Octave band (Hz) | |||||||
| RPM | (m³/h) | (Pa) | dB(A) | dB(A) | 63 | 125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 |
| 930 | 3770 | 290 | 79 | 59 | 86 | 88 | 79 | 76 | 73 | 71 | 68 | 62 |
| 1450 | 5880 | 704 | 89 | 69 | 96 | 98 | 89 | 85 | 82 | 81 | 77 | 71 |
Handings & Orientation
The correct handings and orientation directly impacts the airflow direction of the fan within the system or to minimise the bends in system design. Incorrect handing or orientation can result in inefficient airflow patterns and poorly captured fumes. Incorrect choices can also affect noise and vibrations levels generated by the fan. You should advise your fan supplier of the required fan handing and orientation at the point of order. A project can be stalled or delayed as fan suppliers will not process an order without this information. This ensures the product performs as required in your system.
Depending on the desired airflow pattern and the specific requirements of the extraction system, the impeller rotation can be set to LG (Right rotation) or RD (Left rotation). Multiple discharge positions are available but it is important to ensure that the right handing is chosen before installation. We do not advise that any contractors change the handing themselves, this can lead to the system only achieving 30% of the duty.
Downloads
Should you require CAD or BIM files to support your specification, please contact us on industrial@axair-fans.co.uk or start a chat using the widget on the lower right of your screen.
Additional Information
Other sizes include the S15, S20, S25, S30 & S50 models.
For applications requiring a higher static pressure the STORM range which provides relatively low air flow rate against elevated system pressures may be more suitable.
Ordering & Support
In stock for rapid dispatch from our UK warehouse with short lead times. Custom options, ATEX certification and engineering support is available. Contact our technical team to discuss your system requirements, specific chemical compatibility needs and requests for CAD/BIM files.
