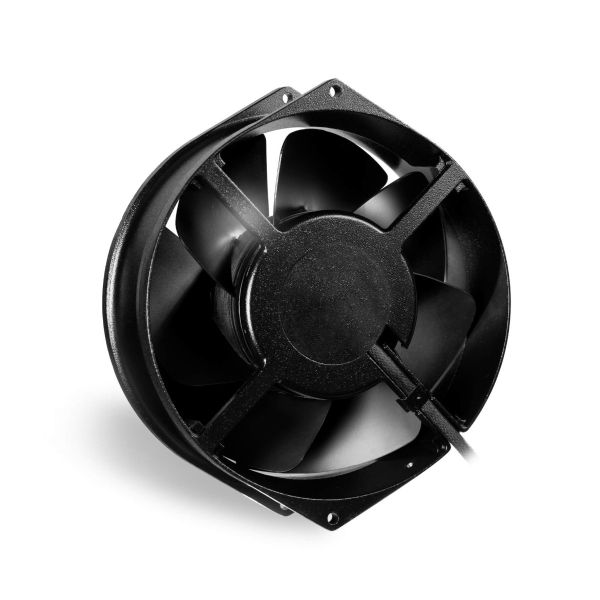

A17M12SWBMT0 High Temperature AC Axial Compact Fan 172x150x55mm 331m³/h 42W 115V Ball Bearing

Name: A17M12SWBMT0 High Temperature AC Axial Compact Fan 172x150x55mm 331m³/h 42W 115V Ball Bearing
SKU: A17M12SWBMT0
Price: 112.71 GBP
Availability: OutOfStock

SKU

A17M12SWBMT0

Buy 20 for £107.07 each and save 5%

£112.71

Notify me when in stock

Out of stock

View Downloads

SKU	A17M12SWBMT0
Lead Times	variable - contact us on 01782 349 430
Manufacturer	FANDISEU
Current Type	AC
Fan Type	AC Compact Axial Fan
ATEX	No
Rated Voltage	115V.a.c.
Frequency	50-60Hz
Dimensions	172x150x55mm
Connection Type	Cable
Cable Length	13.7" - 350mm
Max Air Flow (50Hz)	331m³/h
Airflow Range (50Hz)	250 to 500m³/h
Bearing Type	Ball Bearing
Speed (RPM)	2800
IP Rating	IP44

Description

Specially designed for control panels and enclosures, the high temperature AC axial compact fan range offers:

Compact sizes
Ball & Sleeve Bearing options on many lines
Dust and water protection
A wide selection of airflows

Standard Specifications of A17M12SWBMT0 AC Axial Compact Fan:

Casing Material: Black warnished aluminum
Impeller Material: Metal
Protection degree: IP44, according to EN 60529 standard
Fixing system: by No 2 M4 screws
Insulation Class: F
Motor protection: Impendance
Storage temperature: from -40°C to +90°C
Rated temperature range: from -40°C to +90°C Lifetime L10 at 40°C: 40,000 h
Electrical connection: 2 leads 22AWG UL 3239, 350 mm long
Weight: 1.1 kg
Approvals: UL E223195

Dimension	172x150x55
Rated Voltage	115Va.c
Rated Power (50/60Hz)	42/42
Max Air Flow (m3/h)	332/391
Static Pressure (50/60Hz)	137/157
Rated Speed (50/60Hz) (RPM)	2800/3250
Noise (50/60Hz) (dB(A)	49.0/53.0
Bearing Type	Ball
