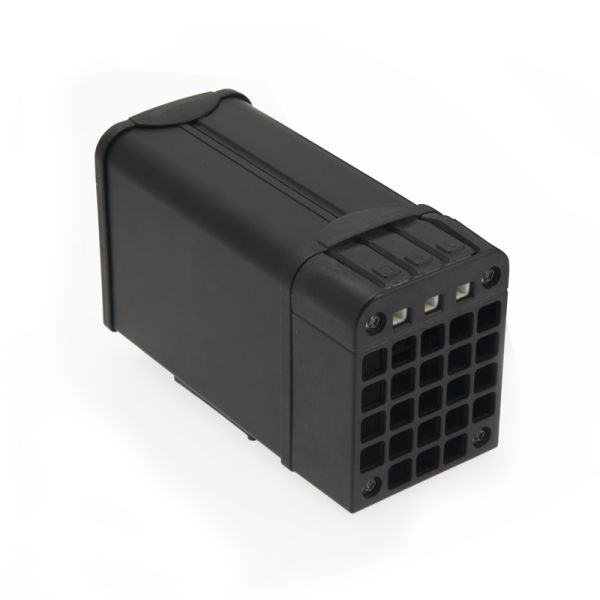

HTP045 45W Enclosure Heater. 250V Max. Terminal Block IP20 - Touch Safe

HTP045 45W Enclosure Heater. 250V Max. Terminal Block IP20 - Touch Safe

SKU
HTP045
Buy 18 for £33.48 each and save 5%
£35.24
7 left in Stock
View Downloads
Lead Timesvariable - contact us on 01782 349 430
ManufacturerFANDISEU
Heating Power (w)45
Wiring TypeTerminal
Heater TypePlastic with Terminal Block

Description

Axair heaters have a self regulating PTC element and are made from a black anodised aluminium

Key Features of HTP045:

  • Heating element: PTC thermistor, self regulating
  • Heat sink: black anodised extruded aluminium profile black PET; in case of accidental contact, the surface material of the plastic heater prevents the danger of burns
  • Method of mounting: snap-on fixing on RAIL 35mm EN 50022
  • Rated temperature range: from -30°C to +40°C
  • Storage temp. range from -40°C to +70°C
  • Protection degree by heaters: IP20
  • Dimensions (mm): 138x85x61.5
  • Electrical connection:by 3 poles terminal L-N-PE 3 clamps for solid or fine stranded wire 0.5 ÷ 2.5mm2 (20 ÷ 16 AWG)
  • Appliance class: class l
  • Rated voltage range: 110-240 V a.c./d.c.
  • Rated frequency: 50/60 Hz
  • Max voltage: 265 V a.c./d.c.
  • Applicable standards: EN 60335-1
  • Approvals: CE; cURus certified till max 50°C



View the datasheet
