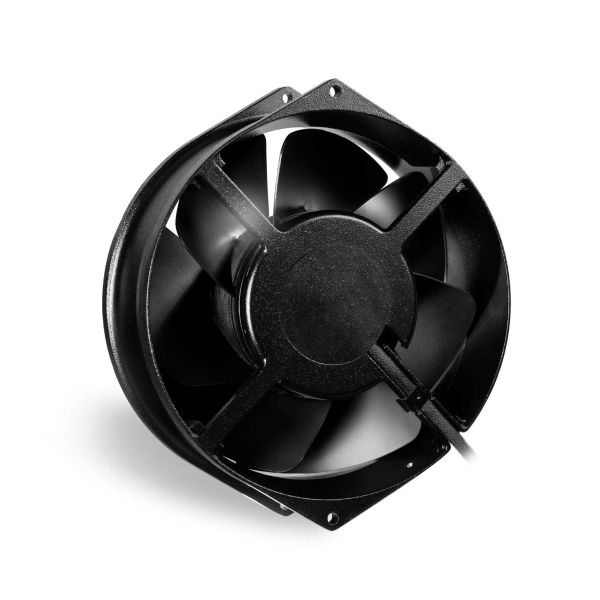

A17T23SWBMT0 High Temperature AC Axial Compact Fan 172x150x55mm 382m³/h 45w 230V Ball Bearing
SKU
A17T23SWBMT0
Buy 20 for
£107.08
each and save 5%
£112.72
| SKU | A17T23SWBMT0 |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Manufacturer | FANDISEU |
| Current Type | AC |
| Fan Type | AC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 230V.a.c |
| Frequency | 50-60Hz |
| Dimensions | 172x150x55mm |
| Connection Type | Cable |
| Cable Length | 13.7" - 350mm |
| Max Air Flow (50Hz) | 382(m³/h) |
| Airflow Range (50Hz) | 250 to 500m³/h |
| Bearing Type | Ball Bearing |
| Speed (RPM) | 2750 |
| IP Rating | IP44 |
Description
Specially designed for control panels and enclosures, the High Temperature AC Axial Compact Fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of A17T23SWBMT0 AC Axial Compact Fan:
- Casing Material: Black warnished aluminum
- Impeller Material: Metal
- Protection degree: IP44, according to EN 60529 standard
- Fixing system: by No 2 M4 screws
- Insulation Class: F
- Motor protection: thermal
- Storage temperature: from -40°C to +90°C
- Rated temperature range: from -40°C to +90°C Lifetime L10 at 40°C: 40,000 h
- Electrical connection: 2 leads 22AWG UL 3239, 350 mm long
- Weight: 1.1 kg
- Approvals: UL E223195
| Dimension | 172x150x55 |
| Rated Voltage | 230Va.c |
| Rated Power (50/60Hz) | 45/45 |
| Max Air Flow (m3/h) | 382/433 |
| Static Pressure (50/60Hz) | 124/124 |
| Rated Speed (50/60Hz) (RPM) | 2750/3150 |
| Noise (50/60Hz) (dB(A) | 58.0/61.0 |
| Bearing Type | Ball |
