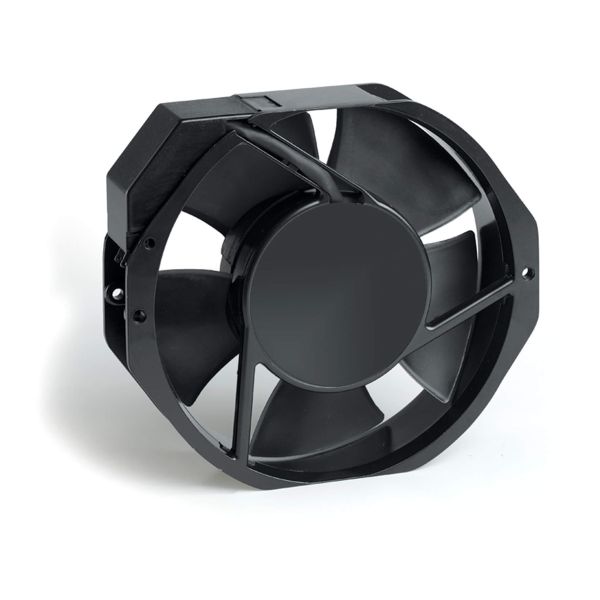

C17B12HTBF00 AC Axial Compact Fan 172X150X38 300m³/h 29w 115V Ball Bearing
SKU
C17B12HTBF00
Buy 20 for
£90.41
each and save 5%
£95.17
In Stock
| SKU | C17B12HTBF00 |
|---|---|
| Manufacturer | FANDISEU |
| Current Type | AC |
| Fan Type | AC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 115V.a.c. |
| Frequency | 50-60Hz |
| Dimensions | 172x150x38mm |
| Connection Type | Terminal |
| Cable Length | 12.2" - 310mm |
| Max Air Flow (50Hz) | 300(m³/h) |
| Airflow Range (50Hz) | 250 to 500m³/h |
| Bearing Type | Ball Bearing |
| Speed (RPM) | 2850 |
| IP Rating | IP44 |
Description
Specially designed for control panels and enclosures, the AC axial compact fan range offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard specifications of C17B12HTBF00 AC axial compact fan:
- Casing Material: Black varnished aluminium
- Impeller Material: Black fibreglass reinforced plastic (PBT PC) UL94V-0
- Protection degree: IP44, according to EN 60529 standard
- Fixing system: by No 4 M4 screws
- Motor protection: thermal
- Storage temperature: from -40°C to +80°C
- Rated temperature range: from -40°C to +70°C Lifetime L10 at 40°C: 40,000 h
- Electrical connection: flat terminals 110 series (2.8X0.5mm)
- Weight: 0.72 kg
- Approvals: UL E223195
| Dimension | 172x150x38 |
| Rated Voltage | 115 Va.c |
| Rated Power (50/60Hz) | 29/28 |
| Max Air Flow (m3/h) | 300/360 |
| Static Pressure (50/60Hz) | 167/187 |
| Rated Speed (50/60Hz) (RPM) | 2850/3400 |
| Noise (50/60Hz) (dB(A)) | 54.0/58.0 |
| Bearing Type> | Ball |
