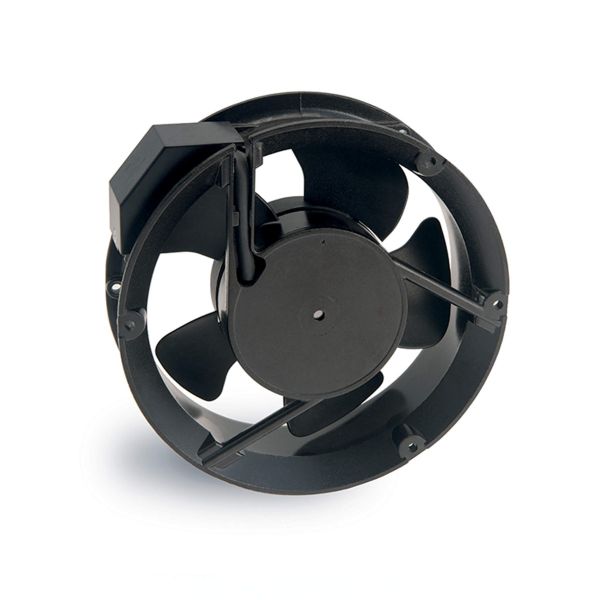

C18C12HTBF00 AC Axial Compact Fan 172x172x51mm 348m³/h 31w 115V Ball Bearing
SKU
C18C12HTBF00
Buy 20 for
£88.09
each and save 5%
£92.73
In Stock
| SKU | C18C12HTBF00 |
|---|---|
| Manufacturer | FANDISEU |
| Current Type | AC |
| Fan Type | AC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 115V.a.c. |
| Frequency | 50-60Hz |
| Dimensions | 172x172x51mm |
| Connection Type | Terminal |
| Max Air Flow (50Hz) | 348(m³/h) |
| Airflow Range (50Hz) | 250 to 500m³/h |
| Bearing Type | Ball Bearing |
| Speed (RPM) | 2850 |
| IP Rating | IP44 |
Description
Specially designed for control panels and enclosures, the AC Axial Compact Fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of C18C12HTBF00 AC Axial Compact Fan:
- Casing Material: Die-casting aluminium painted black
- Impeller Material: Black thermoplastic UL 94V-0
- Protection degree: IP44, according to EN 60529 standard
- Fixing system: by No 4 M4 screws
- Motor protection: Impedance
- Storage temperature: from -40°C to +70°C
- Rated temperature range: from -10°C to +60°C Lifetime L10 at 40°C: 30,000 h
- Electrical connection: bronze flat terminals (3x0.5 mm)
- Weight: 0.82kg
- Approvals: UL E223195; VDE 40009963
| Dimension | 172x172x51 |
| Rated Voltage | 115Va.c |
| Rated Power (50/60Hz) | 31/31 |
| Max Air Flow (m3/h) | 348/384 |
| Static Pressure (50/60Hz) | 157/197 |
| Rated Speed (50/60Hz) (RPM) | 2850/3400 |
| Noise (50/60Hz) (dB(A) | 50.0/55.0 |
| Bearing Type | Ball |
