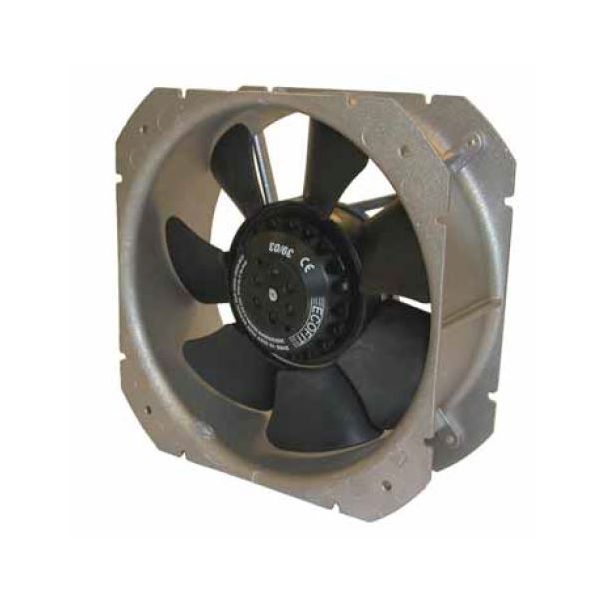

C25S12HKBE00 AC Axial Compact Fan 280x280x80mm 1680m³/h 107W 115V Ball Bearing

C25S12HKBE00 AC Axial Compact Fan 280x280x80mm 1680m³/h 107W 115V Ball Bearing

SKU
C25S12HKBE00
Buy 8 for £262.07 each and save 5%
tick In Stock
View Downloads chevron-right
SKU C25S12HKBE00
Manufacturer FANDISEU
Axial Fan Dimensions 280x280x80mm
Max Air Flow (50Hz) 1680(m³/h)
Airflow Range (50Hz) >501m³/h
Bearing Type Ball Bearing
Voltage 115V.a.c

Description

Specially designed for control panels and enclosures, the AC Axial Compact Fan range from Axair online offers:

  • Compact sizes
  • Ball & Sleeve Bearing options on many lines
  • Dust and water protection
  • A wide selection of airflows

Standard Specifications of C25S12HKBE00 EC Axial Compact Fan:

  • Casing Material: aluminium UNI5076
  • Impeller Material: casing of aluminium alloy die casting and black painted steel
  • Protection degree: IP20, according to EN 60529 standard
  • Fixing system: No 4 holes Ø5.4
  • Motor protection: thermally
  • Rated temperature range: from -20°C to +70°C
  • Lifetime L10 at 25°C: from 53,000 to 80,000 h
  • Weight: 2.8 kg
  • Approvals: CE



Dimension 280x280x80
Rated Voltage 115 Va.c
Rated Power (50/60Hz) 107/138
Max Air Flow (m3/h) 1680/1920
Static Pressure (50/60Hz) 299/270
Rated Speed (50/60Hz) (RPM) 2730/3170
Noise (50/60Hz) (dB(A) 64.6/67.4
Bearing Type Ball
