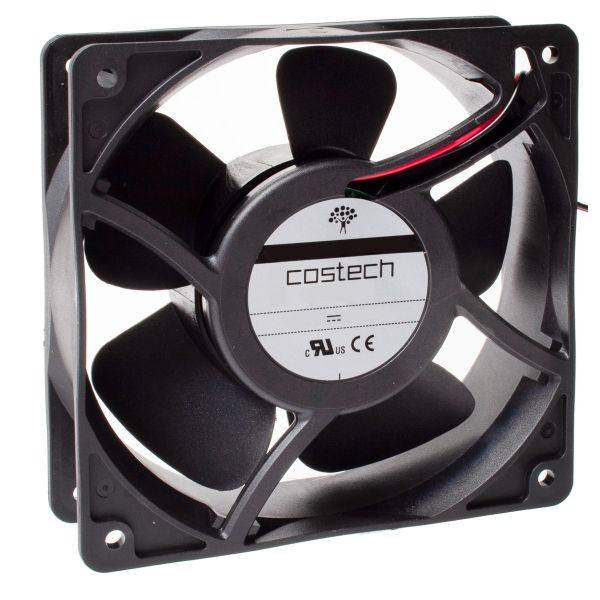

D12B05HWSZ00 24V DC Axial Compact Fan 120x120x38mm 179m³/h 7.7W Sleeve Bearing
SKU
D12B05HWSZ00
Buy 40 for
£21.31
each and save 5%
£22.43
In Stock
| SKU | D12B05HWSZ00 |
|---|---|
| Manufacturer | FANDISEU |
| Current Type | DC |
| Fan Type | DC Compact Axial Fan |
| ATEX | No |
| Rated Voltage | 24V.d.c. |
| Dimensions | 120x120x38mm |
| Max Air Flow (50Hz) | 179(m³/h) |
| Airflow Range (50Hz) | 100 to 250m³/h |
| Bearing Type | Sleeve Bearing |
Description
Specially designed for control panels and enclosures, the DC Axial Compact Fan range from Axair online offers:
- Compact sizes
- Ball & Sleeve Bearing options on many lines
- Dust and water protection
- A wide selection of airflows
Standard Specifications of D12B05HWSZ00 DC Axial Compact Fan:
- Casing material: Black fibreglass reinforced plastic (PBT) UL 94V-0
- Impeller material:Black fibreglass reinforced plastic (PBT) UL 94V-0
- Protection degree: IP20, according to EN 60529 standard
- Fixing system: by No. 4 M4 screws
- Motor protection: IC
- Storage temperature: from -40°C to +70°C from -10°C to +70°C (ball bearing); from -10°C to +60°C (sleeve bearing)
- Rated temperature range: 70,000 h at 40°C and 40,000 h at max temperature (ball bearing); 50,000 h at 40°C and 35,000 h at max temperature (sleeve bearing) Lifetime L10 at 40°C:
- Electrical connection: 2 leads 24AWG UL 1007, 300 mm long.
- Weight: 156g
- Approvals: UL E223195
| Dimension | 120x120x38 |
| Rated Voltage | 24 Vd.c. |
| Rated Power (W) | 7.7 |
| Max Air Flow (m3/h) | 179 |
| Static Pressure (Pa) | 66 |
| Rated Speed (RPM) | 2800 |
| Noise (dB(A)) | 46.7 |
| Bearing Type | Sleeve |
