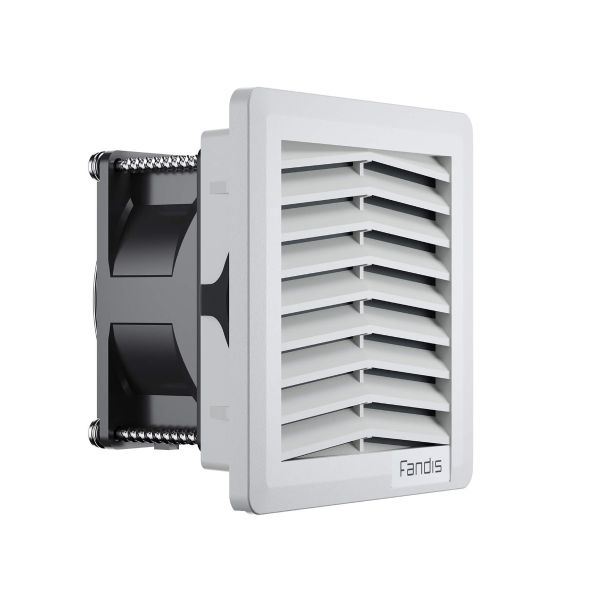

FF08GA230UF Fandis Filter Fan Unit 230V AC 22m³/h Standard Airflow. Fits Cut Out 92x92mm. RAL 7035

FF08GA230UF Fandis Filter Fan Unit 230V AC 22m³/h Standard Airflow. Fits Cut Out 92x92mm. RAL 7035

SKU
FF08GA230UF
Buy 16 for £63.36 each and save 5%
In Stock
View Downloads
SKU FF08GA230UF
Manufacturer FANDISEU
Voltage 230V.a.c
Cut Out Size 92x92mm
EMC Shielded No
Airflow Range (50Hz) < 100m³/h
Max Air Flow (50Hz) 22(m³/h)
Airflow Direction Standard (Suck In)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.


    Technical data

  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Airflow Direction Reverse
  • Electrical Connection Wires
  • Life Expectancy, 50000 h at 20 °C
  • Wires Section 22 AWG
  • Filter Class ISO coarse 55% ISO 16890
  • Filter Class G3 EN 779
  • Filter Material thermo-linked progressive structure synthetic fibre

Dimensions of FF08GA230UF:

Standard Filter Fan Size: 106mm (w) x 106mm (h) x 73mm (d)



Rated Voltage 230Va.c
Rated Power (50/60Hz) 12/11
Max Air Flow (m3/h) 22/26
Static Pressure (50/60Hz) 40/55
Noise (50/60Hz) (dB(A)) 37/42





EMC versions are available on request.
