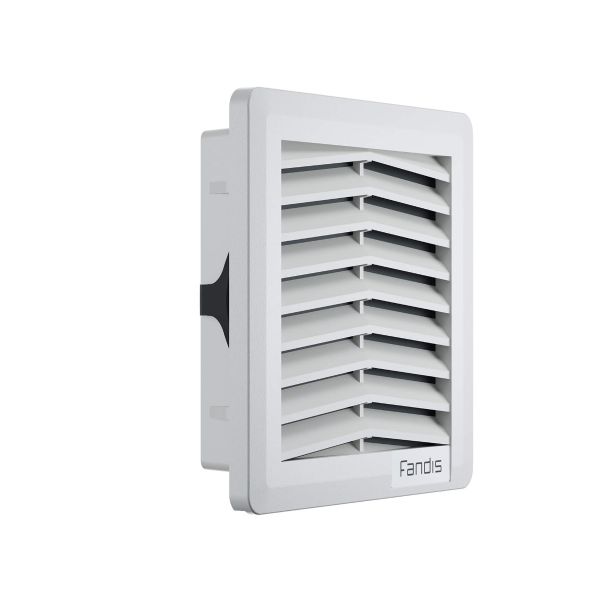

FF08U Fandis Exhaust Filter to Fit Cut Out 92x92mm. RAL 7035

FF08U Fandis Exhaust Filter to Fit Cut Out 92x92mm. RAL 7035

SKU
FF08U
Buy 48 for £10.27 each and save 5%
View Downloads
SKU FF08U
Manufacturer FANDISEU
Cut Out Size 92x92mm
EMC Shielded No
IP Rating IP54

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF series exhaust filter and filter fans feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.



FF08U Exhaust Filter Technical data:


  • Mounting Wall Thickness 1-2 mm
  • Spare Parts Filter Media M08FPF
  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Filter Class ISO coarse 55% ISO 16890
  • Filter Class G3 EN 779
  • Filter Material thermo-linked progressive structure synthetic fibre
  • IP Protection Degree IP54
  • Operating Temperature -30÷60 °C
  • Storage Temperature -40÷70 °C


  • Dimensions of FF08U:

    Standard Filter Fan Exhaust Size: 106mm (w) x 106mm (h) x 16mm (d)


    The FF08U exhaust filter facilitates effective use of a filter fan unit when either delivering or exhausting air from an enclosure. Its Clip mounting system, for plates from 1 mm to 3.7 mm thick make for quick installation and ease of use when changing filters. The sliding opening of the cover of the FF Series filter fans means that no tools are required. EMC versions are available on request.
