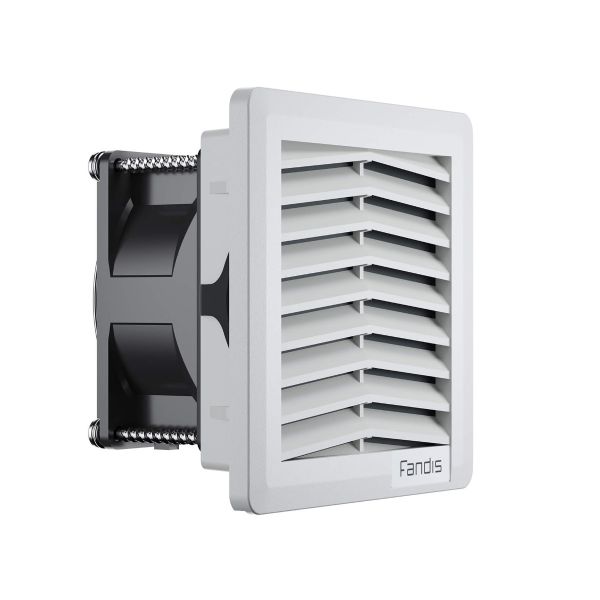

FF08A115UNR Fandis Filter Fan Unit 115V AC 16m³/h Reverse Airflow. Fits Cut Out 92x92mm. RAL 7035

The Fandis FF08A115UNR is a compact filter fan unit designed to provide reliable cooling and ventilation for electrical control panels, cabinets and enclosures. Operating from a 115V AC supply, it delivers airflow up to 16m³/h at 50Hz, helping to remove excess heat and maintain suitable operating conditions for sensitive electronic equipment. Designed for easy installation, it features a screwless electrical connection and a fast, tool-free mounting system, with a panel cut-out size of 92x92mm .

The FF08A115UNR features reverse airflow and a robust PC/ABS UL94 V-0 housing in RAL 7035, along with a synthetic filter media that provides ISO Coarse 55% filtration (ISO 16890), equivalent to G3 as per EN 779. Its compact dimensions of 106.5 × 106.5 × 60mm and a lifespan of up to 50,000 hours at 20°C make it a dependable choice for cooling enclosures.

EMC versions are available upon request, and the broader Fandis FF range includes options suitable for both indoor and outdoor applications.

Technical data

• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Airflow Direction Reverse
• Electrical Connection Wires
• Life Expectancy, 50000 h at 20 °C, 50000 h at 68 °F
• Wires Section 22 AWG
• Filter Class ISO coarse 55% ISO 16890
• Filter Class G3 EN 779
• Filter Material thermo-linked progressive structure synthetic fibre

Dimensions of FF08A115UNR: 106.5mm (w) x 106.5mm (h) x 60mm (d)

View the full range of Fandis FF Filter Fans.
