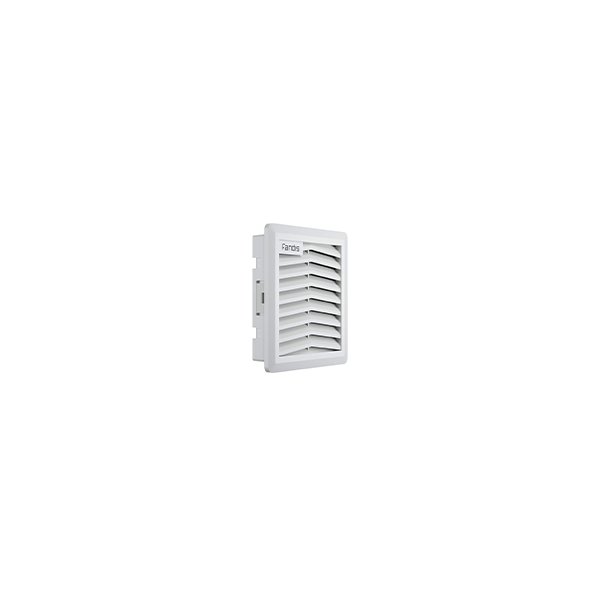

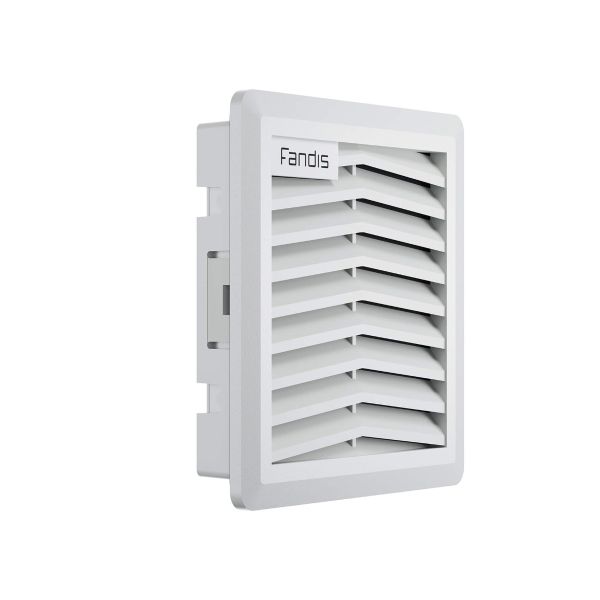

FPF08KUG-101 Fandis Exhaust Filter to Fit Cut Out 92x92mm. RAL 7035

FPF08KUG-101 Fandis Exhaust Filter to Fit Cut Out 92x92mm. RAL 7035

SKU
FPF08KUG-101
Buy 48 for £9.98 each and save 5%
View Downloads
Manufacturer FANDISEU
Cut Out Size 92x92mm
EMC Shielded No
IP Rating IP54

Description

Specially designed for control panels and enclosures, the FPF range of exhaust filters offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gasketts for dust and water protection

Standard Specifications:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media available here
  • IP54 rated
  • CSA approved
  • Also available as full fan filter unit

The FPF08KUG exhaust filter facilitates effective use of a filter fan unit when either delivering or exhausting air from an enclosure. The Exhaust is also available as a full fan filter unit in either 115V or 230V and varying airflow rates.  The Click fit mounting throughout the range allows for fast mounting thanks to its elastic hooks, this means no need for tools or gadgets to fit. The plastic parts are made of PC/ABS alloy. The FPF08KUG comes as standard in colour RAL 7035, but is available in 4 other colours on request, minimum order quantities will apply to bespoke colours. The FPF08KUG comes with integrated sealing gaskets in polyurethane foam for dust and water protection making it IP54 and is compact with a plate thickness range of 1.5mm. The filter media comes with G3 as standard but can be upgraded to G4 upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The exhaust filter/inlet can be fitted for a low external profile, or if more space inside the enclosure is needed, an adaptor can be used giving the unit more space inside, extending the fan filter units external profile. The enclosure exhaust is UL approved as well as CSA approved. IP55, 3R, Type1 and EMC versions are also available on request.
