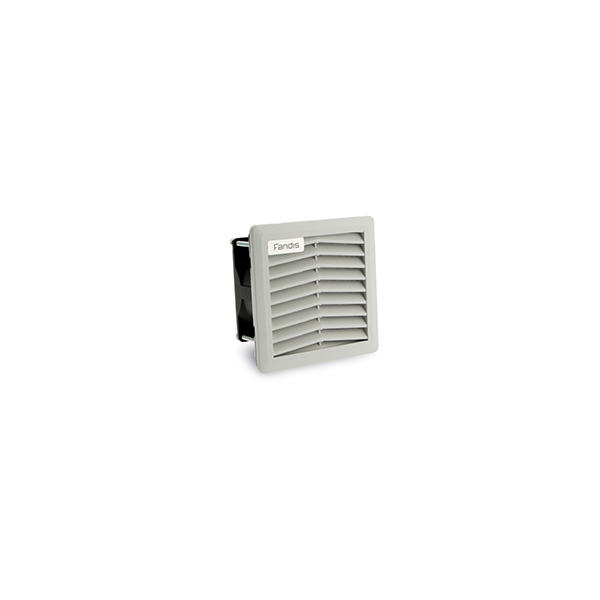

FPF08KU115BR-110 Fandis Filter Fan Unit 115V AC 23m³/h Reverse Airflow. Fits Cut Out 92x92mm. RAL 7035

FPF08KU115BR-110 Fandis Filter Fan Unit 115V AC 23m³/h Reverse Airflow. Fits Cut Out 92x92mm. RAL 7035

SKU
FPF08KU115BR-110
Buy 16 for £41.95 each and save 5%
tick In Stock
View Downloads chevron-right
SKU FPF08KU115BR-110
Manufacturer FANDISEU
Voltage 115V.a.c
Cut Out Size 92x92mm
EMC Shielded No
Airflow Range (50Hz) < 100m³/h
Max Air Flow (50Hz) 23(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Reverse AirflowSpecially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gasketts for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.50kg

Dimensions of FPF08KU115BR-110:

Standard Filter Fan Size: 105mm (w) x 105mm (h) x 67mm (d)

Filter fan units are a great solution to thermal management. The FPF08KU115BR-110, which is the reverse airflow version of this model, is IP54. This is due to its permanent sealing gasket in polyurethane foam. Its compact, low profile side mount can be modified using an adaptor. It can sit flush to the cabinet with the unit fully inside the enclosure or, alternatively, pushed out slightly by using an adaptor to extend its external profile allowing for more space inside the enclosure. Fitting the FPF08KU115BR-110 with or without an adaptor is easy as it features click fit mounting allowing for easy, fast installation. G3 filter media comes as standard in the FPF08KU115BR-110 however G4 media is available on request. All our filter medias are reusable. They can be reused by washing, blow drying and lightly beating. They can be washed up to 10 times. The filter fan unit comes with a plate thickness of between 1.5 and 2.2mm and the plastic parts are made from ABS and PC alloy. IP55 is available on request as well as an EMC version, Type1, and 3R. The FPF08KU115BR-110 has UL approval according to UL 508 as well as CE, cURus and CSA approved.  This filter fan unit contains shielded ball bearings.



Dimension 105x105x67mm
Rated Voltage 115Va.c
Rated Power (50/60Hz) 9.0/7.0
Max Air Flow (m3/h) 23/30
Static Pressure (50/60Hz) 42/62
Noise (50/60Hz) (dB(A)) 33.0/38.0
Bearing Type Ball





We recommend using this filter fan alongside the FPF08KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
