C24 Fan Power Lead 24" (610mm) Single Insulated Straight Connection

Fandis C24 double insulated straight power cord designed primarily for frame axial fans in EC, AC or DC and filter fan units. Measuring 24 inches in length, they provide a secure and flexible power linkage across multiple ventilation systems.

• Key Features:
• Quick fan power connection or disconnection with standard terminal male plugs
• Length: 610mm (24")
• Plug material: self-extinguishing PVC
• Straight plug connection
• Daisy chain plugs for multiple connections are available on request
• Other lengths are available on request, subject to quantity
• Cable type: flat flexible wire without sheath, H03VH-H according to CEI 20-20 or equivalent
• Color: black

View our full range of cables, leads and rivets.

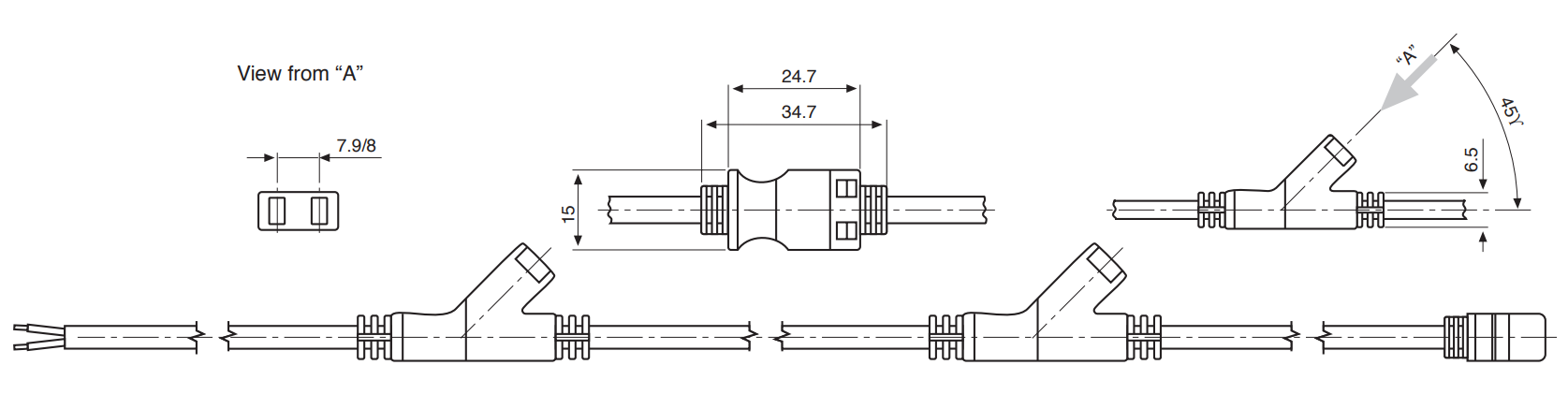

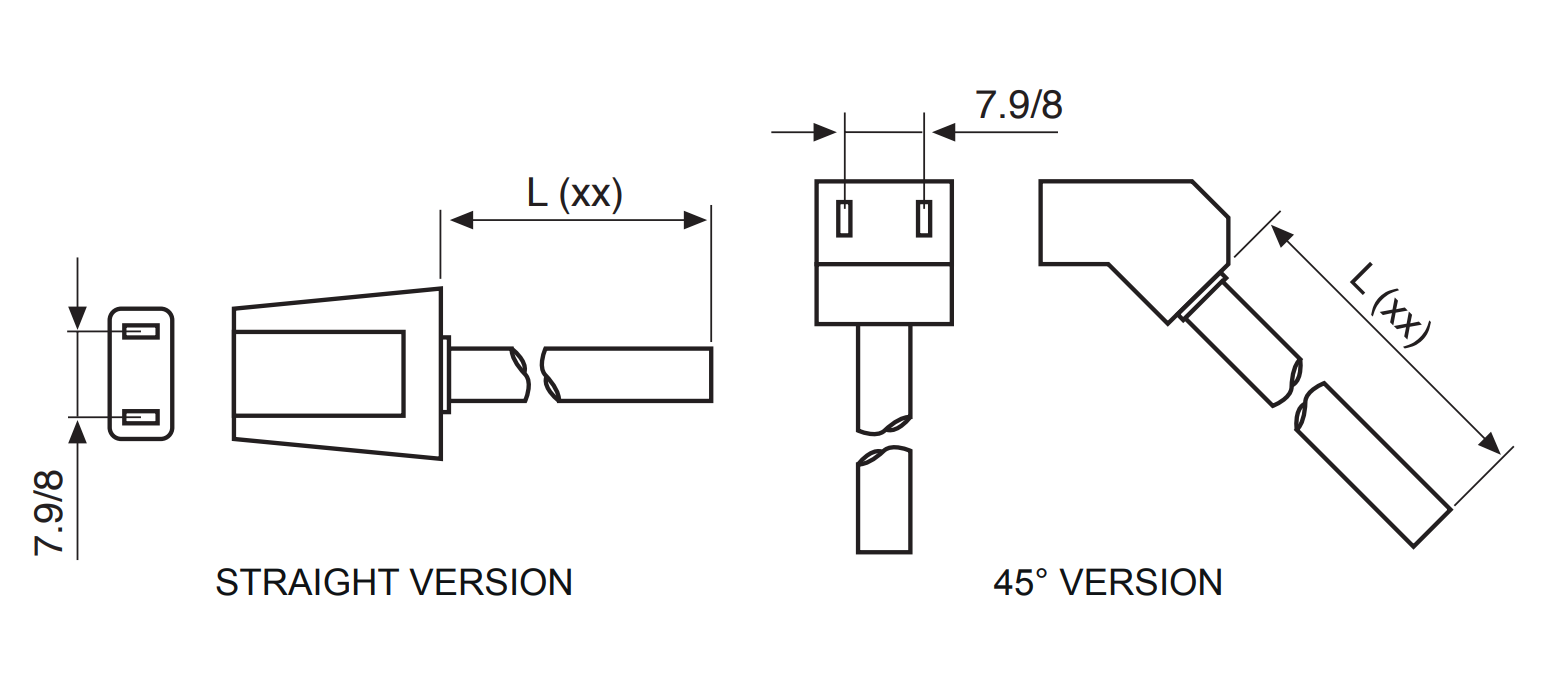

Fan Power Lead Technical Drawings:
