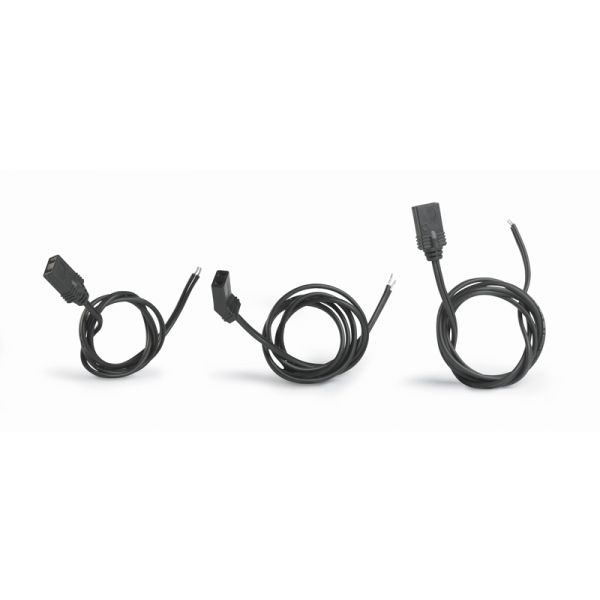

C100 Fan Power Lead 100" (2540mm) Single Insulated Straight Connection

C100 single-insulated power cords are designed primarily for frame axial fans in EC, AC or DC and filter fan units. Measuring 100 inches in length, they provide a secure and flexible power linkage across multiple ventilation systems.

Key Features:

• Quick fan power connection or disconnection with standard terminal male plugs

• Length: 2540mm (100")

• Plug material: self-extinguishing PVC

• Straight plug connection

• Daisy chain plugs for multiple connections are available on request

• Other lengths are available on request, subject to quantity

• Cable type: flat flexible wire without sheath, H03VH-H according to CEI 20-20 or equivalent

• Colour: black

View our full range of cables, leads and rivets.

Fan Power Lead Technical Drawings
