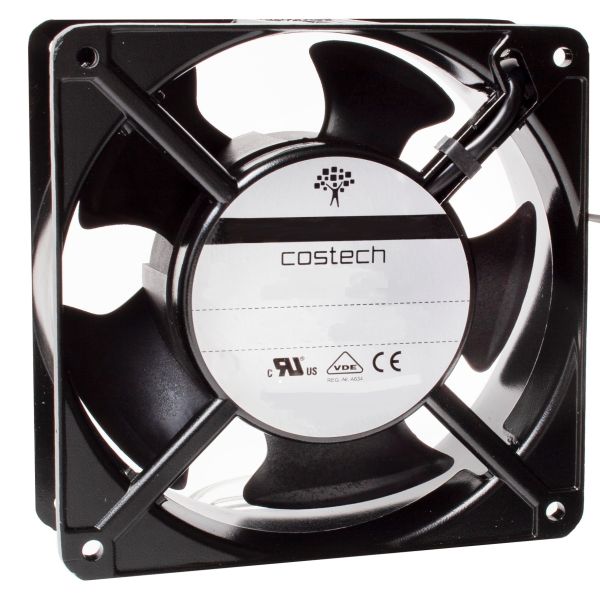

A08A12HWBF00 AC Axial Compact Fan 80x80x25mm 36m³/h 14W 115V Ball Bearing

The A08A12HWBF00 is part of our large range of AC compact axial fans. This high speed axial fan comes with a lead wire connection and is manufactured with a back die cast aluminium alloy casing. The impeller is made out of fibreglass reinforced PBT PC. The A08A12HWBF00 contains ball bearings and has a shaded pole motor. The motor is impedance protected and has an ingress protection of 20 (IP20). The A08A12HWBF00 has UL approval according to UL 507 as well as CE and cURus. It also boasts a lifetime of around 40,000 hours at 40°C, the fan itself can operate between -40°C to +70°C. Our AC axial compact fans come with standard mounting holes (71.5 mm) as well as standard industry sizes and this particular model uses No 4 M4 screws in the fixing system. The A08A12HWBF00 is 80x80x25 and has a rated speed of between 2,600-3,100 RPM with a maximum airflow of 36 / 41 m3/h.

Specially designed for control panels and enclosures, the AC Axial Compact Fan range from Axair online offers:

• Compact sizes
• Ball & Sleeve Bearing options on many lines
• Dust and water protection
• A wide selection of airflows

Standard Specifications of A08A12HWBF00 AC Axial Compact Fan:

• Casing Material: Black varnished aluminum
• Impeller Material: Black fibreglass reinforced plastic (PBT PC) UL 94V-0
• Protection degree: IP20, according to EN 60529 standard
• Fixing system: by No 4 M4 screws
• Motor protection: Impedance
• Storage temperature: from -40°C to +80°C
• Rated temperature range: from -40°C to +70°C Lifetime L10 at 40°C: 40,000 h
• Electrical connection: 2 leads 22AWG UL 1007, 300 mm long.
• Weight: 0.26 kg
• Approvals: UL E223195

Download the datasheet for A08A12HWBF00
