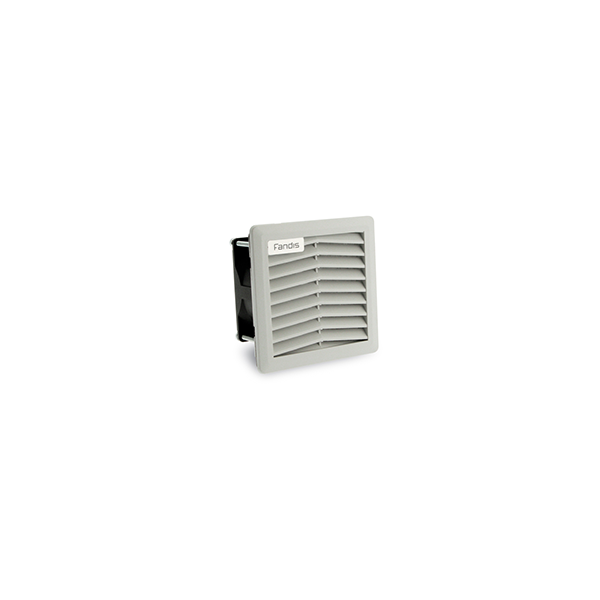

FPF08KU115B-110 Fandis Filter Fan Unit 115V 23m³/h Standard Airlfow. Fits Cut Out 92x92mm

FPF08KU115B-110 Fandis Filter Fan Unit 115V 23m³/h Standard Airlfow. Fits Cut Out 92x92mm

FPF08KU115B-110 Fandis Filter Fan unit,115V, 23m³/h, Standard Flow, RAL 7035, Outer Dims: 105 x 105mm, Fits Cut Out: 92 x 92mm, IP54, G3 Media, -10 ~ +50°C Rated Temp Range

In stock

SKU FPF08KU115B-110
  • Buy 16 for £31.74 each and save 5%

Description / FPF08KU115B-110 Fandis Filter Fan Unit 115V 23m³/h Standard Airlfow. Fits Cut Out 92x92mm

Fan Filter Enclosure Diagram Standard AirflowSpecially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • Temperature Range =10 to +50

Dimensions of FPF08KU115B-110:

Standard Filter Fan Size: 105mm (w) x 105mm (h) x 67mm (d)

Filter units are a great solution to climate control. The FPF08KU115B-110, which is the standard airflow version of this model, is IP54. This is thanks to its permanent sealing gasket in polyurethane foam. IP55 is available on request as well as an EMC version, Type1, and 3R. Its low profile, compact, side mount can be modified using an adaptor. It can sit flush to the enclosure with the unit fully inside the enclosure or, alternatively, pushed out slightly by using an adaptor to extend its external profile allowing for more space inside the enclosure. Fitting the FPF08KU115B-110 with or without an adaptor is easy as it features click fit mounting allowing for easy, fast installation. G3 filter media comes as standard in the FPF08KU115B-110 however G4 media is available on request. All our filter medias are reusable. They can be reused by washing, blow drying and lightly beating. They can be washed up to 10 times. The fan filter unit comes with a plate thickness of between 1.5 and 2.2mm and the plastic parts are made from PC and ABS alloy. The FPF08KU115B-110 has UL approval according to UL 508 as well as CE, cURus and CSA approved.  This filter fan unit contains shielded ball bearings.

Dimension 105x105x67mm
Rated Voltage 115Va.c
Rated Power (50/60Hz) 9.0/7.0
Max Air Flow (m3/h) 23/30
Static Pressure (50/60Hz) 42/62
Noise (50/60Hz) (dB(A)) 33.0/38.0
Bearing Type Ball



View the datasheet



We recommend using this filter fan alongside the FPF08KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.



More Information

Product NumberFANDISEU
Cut Out Size92x92mm
Max Air Flow (50Hz)23(m³/h)
Airflow DirectionStandard (Suck In)
