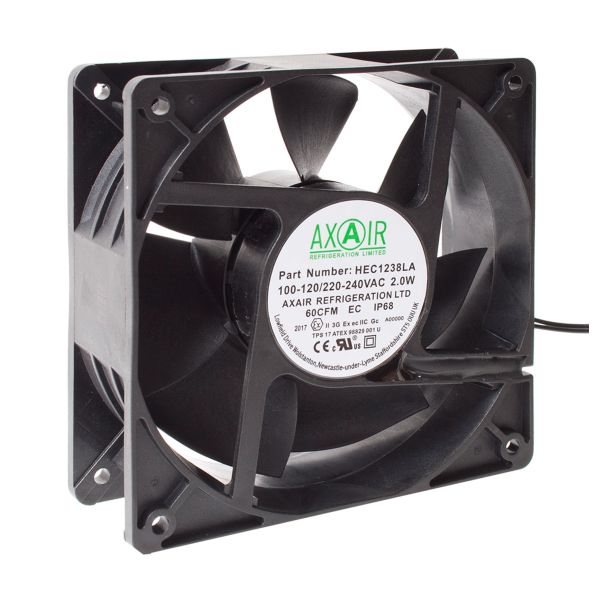

Explosion Proof (ATEX Equipment Zone 2 Ex ec) EC Compact Axial Fan IP68 120x120x38mm 2Wa HEC1238LA

Explosion Proof (ATEX Equipment Zone 2 Ex ec) EC Compact Axial Fan IP68 120x120x38mm 2Wa HEC1238LA

Buy 40 for £39.43 each and save 5%
In Stock
View Downloads
Manufacturer AXAIRREF
Axial Fan Dimensions 120x120x38mm
Voltage 115-230 V.a.c
Bearing Type Ball Bearing
IP Rating IP68


IMPORTANT NOTE: The HEC range is an ATEX "U" marked component & must be integrated into a piece of equipment that is then rated as a complete stand-alone item. This product is not suitable for use to ventilate an ATEX zoned area such as, UPS rooms, battery charging etc. For applications that require a stand-alone ATEX rated product please see https://www.axair-fans.co.uk/catalogsearch/result/?q=ATEX.


Exclusive to Axair Fans this compact axial fan is not only EC and ingress protected to IP68 but is ATEX certified making it suitable for use in potentially hazardous environment equipment marked for use in zone 2. The ATEX certified range gives confidence to users by incorporating a fully encapsulated motor and spark proof components. The compact axial itself is constructed using ball bearings, increasing the lifespan of the product making it more cost effective.

The HEC1238LA is a low speed variant of the ATEX EC compact axial fan offering a maximum airflow of 99m3/h and low noise volumes of 25dB(A) at 1700rpm. Specially designed for control panels and enclosures, but also ideal for both refrigeration, where hydrocarbon refrigerants may be present, but also any other hazardous environments*. The IP68 rating means that it is 100% dust proof and 100% waterproof making it ideal in such hazardous applications. The HEC comes in 1 size, 120x120x39mm (an industry standard size), and is available in 3 speeds, high, medium and low. The EC Axial Compact Fan HEC range from Axair online offers:

  • Compact size
  • Dust and water tight, ingress protection to IP68

Standard Specifications of HEC1238LA EC Compact Axial Fan with IP68 Ingress Protection:

  • Casing Material: Thermoplastic UL 94V-0/Black
  • Impeller Material: Thermoplastic UL 94V-0/Black
  • Protection degree: IP68, according to EN 60529 standard
  • Motor Protection: Locked Rotor Protected
  • Rotation: Clockwise
  • Fixing system: by No 4 M4 screws
  • Storage temperature: from -40°C to +70°C
  • Rated temperature range: from -30°C to +70°C Lifetime L10 at 40°C: 70,000 h
  • Electrical connection: 2 leads 22AWG UL 1007, 300 mm long.
  • Weight: 0.55 kg
  • Bearings: 2x Ball Bearings
  • Safety Approvals: CE, ATEX
Dimension 120x120x38mm
Rated Voltage 115-230V
Rated Power (50/60Hz) 2Wa
Max Air Flow (m3/h) 99
Rated Speed (50/60Hz) (RPM) 1700 (Low)
Max Pressure (Pa) 26
Noise (50/60Hz) (dB(A)) 25
Bearing Type Ball
