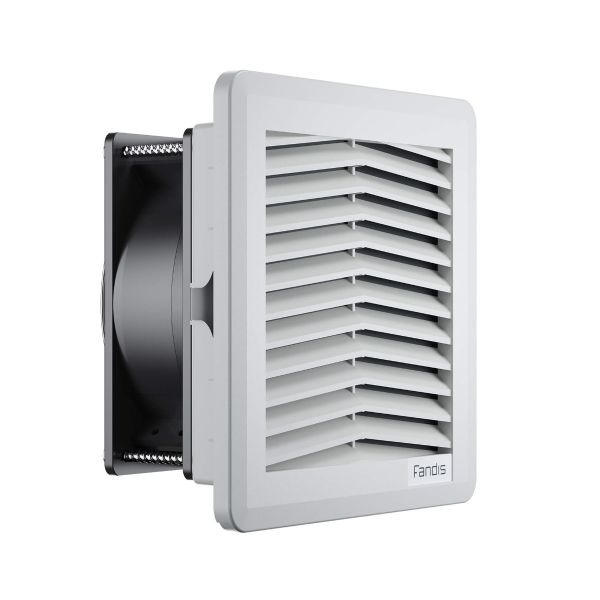

FF12A115UNR Fandis Filter Fan Unit 115V AC 57m³/h Reverse Airflow. Fits Cut Out 124x124mm. RAL 7035

FF12A115UNR Fandis Filter Fan Unit 115V AC 57m³/h Reverse Airflow. Fits Cut Out 124x124mm. RAL 7035

SKU
FF12A115UNR
Buy 20 for £76.40 each and save 5%
In Stock
View Downloads
SKU FF12A115UNR
Manufacturer FANDISEU
Voltage 115V a.c.
Cut Out Size 124x124mm
EMC Shielded No
Airflow Range (50Hz) < 100m³/h
Max Air Flow (50Hz) 57(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.



Technical data

  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Electrical Connection Screwless Terminal Block
  • Life Expectancy, 100000 h at 25 °C
  • Wires Section 28-14 AWG
  • Wires Section 0.75-2.5 mm²
  • Filter Class ISO coarse 55% ISO 16890
  • Filter Class G3 EN 779
  • Filter Material thermo-linked progressive structure synthetic fibre


  • Dimensions of FF12A115UNR:

    Standard Filter Fan Size: 150mm (w) x 150mm (h) x 66mm (d)



    Rated Voltage 115Va.c
    Rated Power (50/60Hz) 19/17
    Max Air Flow (m3/h) 57/69
    Static Pressure (50/60Hz) 82/105
    Noise (50/60Hz) (dB(A)) 40/44





    EMC versions are available on request.
