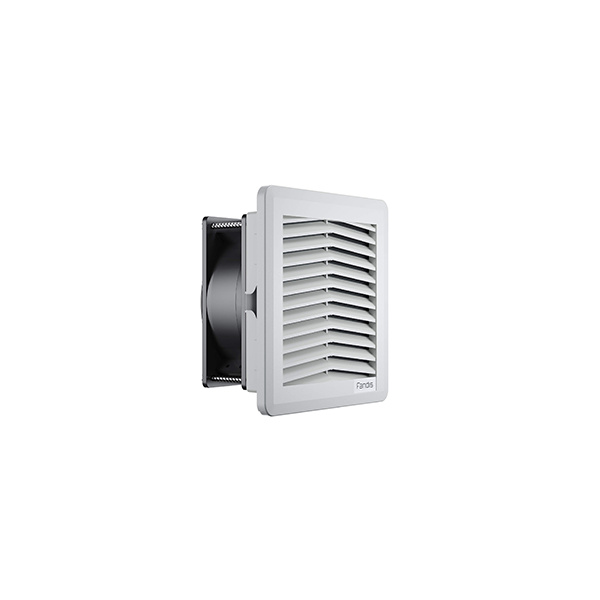

FF12D24UN Fandis Filter Fan Unit 24V DC 46m³/h Standard Airflow. Fits Cut Out 124x124mm. RAL 7035

The Fandis FF12D24UN is a compact filter fan unit designed to provide reliable cooling and ventilation for electrical control panels, cabinets and enclosures. Operating from a 24V DC supply, it delivers airflow up to 46m³/h at 50Hz, helping to remove excess heat and maintain suitable operating conditions for sensitive electronic equipment.

Designed for easy installation, it features a screwless electrical connection and a fast, tool-free mounting system, with a panel cut-out size of 124x124mm. The Fandis FF filter fan series offers a wide range of configurations for indoor and outdoor applications.

Technical data

• Max Airflow 46 m³/h
• Airflow with Exhaust Filter 33 m³/h
• Max Static Pressure 58 Pa
• Rated Voltage 24 V d.c.
• Rated Current 0.31 A
• Rated Power 7.4 W
• Operating Voltage 10-26.7 V d.c.
• Motor Protection Electronically Protected
• Mounting Wall Thickness 1.3-3.2 mm
• Spare Parts Filter Media M12FPF-EU3
• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Airflow Direction Standard
• Electrical Connection Screwless Terminal Block
• Life Expectancy 100000 h at 25 °C
• Wires Section 20-14 AWG
• Wires Section 0.75-2.5 mm²
• Fan Noise 42.5 dB(A)
• Filter Class ISO coarse 55% ISO 16890
• Filter Class G3 EN 779
• Filter Material thermo-linked progressive structure synthetic fibre
• IP Protection Degree IP54
• Operating Temperature -10÷55 °C
• Storage Temperature -40÷70 °C
• UL Ambient Temperature 55 °C

Dimensions of FF12D24UNR: 150mm (w) x 150mm (h) x 66mm (d)
