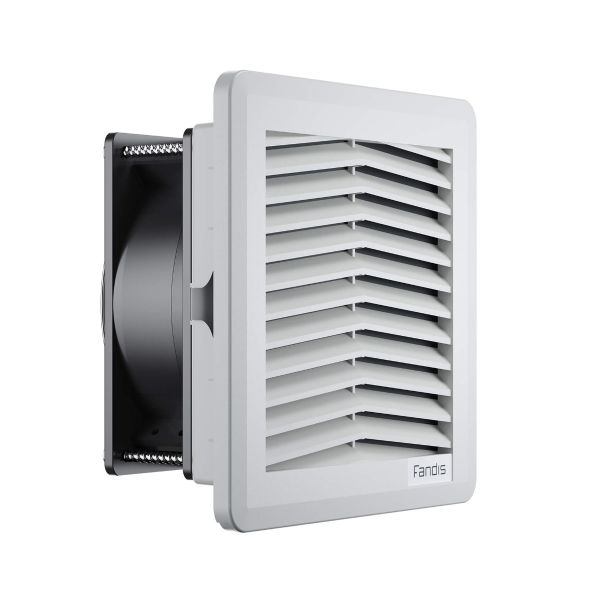

FF12D24UNR Fandis Filter Fan Unit 24V DC 63m³/h Reverse Airflow. Fits Cut Out 124x124mm. RAL 7035

SKU
FF12D24UNR
Buy 20 for £71.65 each and save 5%
  £75.42
tick In Stock
View Downloads chevron-right
SKU FF12D24UNR
Manufacturer FANDISEU
Rated Voltage 24V.d.c.
Cut Out Size 124x124mm
EMC Shielded No
Airflow Range (50Hz) < 100m³/h
Max Air Flow (50Hz) 63(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.



Technical data


  • Max Airflow 63 m³/h
  • Airflow with Exhaust Filter 46 m³/h
  • Max Static Pressure 82 Pa
  • Rated Voltage 24 V d.c.
  • Rated Current 0.31 A
  • Rated Power 7.4 W
  • Operating Voltage 10-26.7 V d.c.
  • Motor Protection Electronically Protected
  • Mounting Wall Thickness 1.3-3.2 mm
  • Spare Parts Filter Media M12FPF-EU3
  • Casing Material PC/ABS UL94 V-0
  • RAL Number 7035
  • Airflow Direction Reverse
  • Electrical Connection Screwless Terminal Block
  • Life Expectancy 100000 h at 25 °C
  • Wires Section 20-14 AWG
  • Wires Section 0.75-2.5 mm²
  • Fan Noise 42.5 dB(A)
  • Filter Class ISO coarse 55% ISO 16890
  • Filter Class G3 EN 779
  • Filter Material thermo-linked progressive structure synthetic fibre
  • IP Protection Degree IP54
  • Operating Temperature -10÷55 °C
  • Storage Temperature -40÷70 °C
  • UL Ambient Temperature 55 °C


    • Dimensions of FF12D24UNR:

    Standard Filter Fan Size: 150mm (w) x 150mm (h) x 66mm (d)



    Rated Voltage 24Vd.c
    Rated Power (W) 7.4
    Max Air Flow (m3/h) 63
    Static Pressure (Pa) 82
    Noise (50/60Hz) (dB(A)) 42.5





    EMC versions are available on request.
