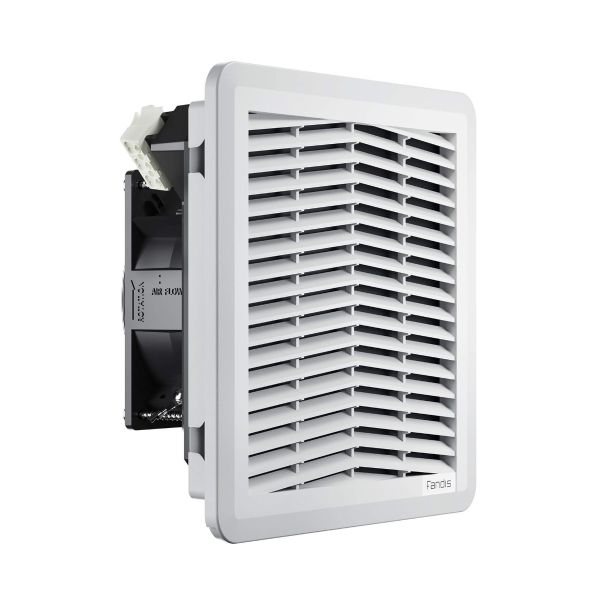

FF13PA230UN Fandis Filter Fan Unit 230V AC 110m³/h Standard Airflow. Fits Cut Out 177x177mm. RAL 7035

Name: FF13PA230UN Fandis Filter Fan Unit 230V AC 110m³/h Standard Airflow. Fits Cut Out 177x177mm. RAL 7035
SKU: FF13PA230UN
Price: 99.82 GBP
Availability: InStock

SKU

FF13PA230UN

Buy 20 for £94.83 each and save 5%

£99.82

Quantity

View Alternative Product

View Downloads

SKU	FF13PA230UN
Manufacturer	FANDISEU
Rated Voltage	230V.a.c
Cut Out Size	177x177mm
EMC Shielded	No
Airflow Range (50Hz)	100 to 250m³/h
Max Air Flow (50Hz)	110(m³/h)
Airflow Direction	Standard (Suck In)

Description

Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.

Technical data

Airflow with Exhaust Filter 84/100 m³/h

Max Static Pressure 80/100 Pa

Operating Voltage 184-253 V a.c.

Frequency 50/60 Hz

Appliance Class I

Motor Protection Thermally Protected

Mounting Wall Thickness 1.3-3.2 mm

Spare Parts Filter Media M13FPF-EU3

Casing Material PC/ABS UL94 V-0

RAL Number 7035

Airflow Direction Direct

Electrical Connection Screwless Terminal Block

Life Expectancy 100000 h at 25 °C

Wires Section 0.75-2.5 mm²

Wires Section 20-14 AWG

Fan Noise 40/44 dB(A

Filter Class G3 EN 779

Filter Class ISO coarse 55% ISO 16890

Filter Material thermo-linked progressive structure synthetic fibre

IP Protection Degree IP54

Operating Temperature -10÷55 °C

Storage Temperature -40÷70 °C

UL Ambient Temperature 55 °C

Dimensions of FF13PA230UN:

Standard Filter Fan Size: 204mm (w) x 204mm (h) x 87mm (d)

Rated Voltage	230Va.c
Rated Power (50/60Hz)	19/17
Max Air Flow (m3/h)	110/130
Static Pressure (50/60Hz)	80/100
Noise (50/60Hz) (dB(A))	40/44
