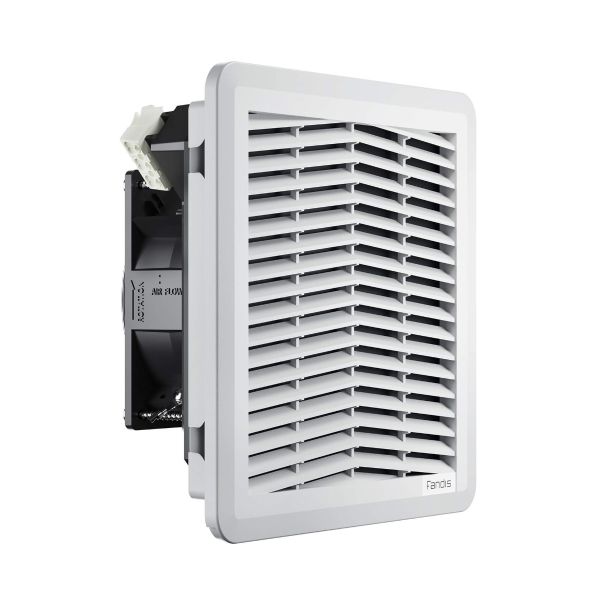

FF13PA230UNR Fandis Filter Fan Unit 230V AC 112m³/h Reverse Airflow. Fits Cut Out 177x177mm. RAL 7035

The Fandis FF13PA230UNR is a compact filter fan unit designed to provide reliable cooling and ventilation for electrical control panels, cabinets and enclosures. Operating from a 230V AC supply, it delivers airflow up to 112m³/h at 50Hz, helping to remove excess heat and maintain suitable operating conditions for sensitive electronic equipment.

Designed for easy installation, it features a screwless electrical connection and a fast, tool-free mounting system, with a panel cut-out size of 177x177mm. The Fandis FF filter fan series offers a wide range of configurations for indoor and outdoor applications.

Technical data

• Airflow with Exhaust Filter 87/104 m³/h
• Rated Current 0.128/0.11 A
• Operating Voltage 184-253 V a.c.
• Frequency 50/60 Hz
• Appliance Class I
• Motor Protection Thermally Protected
• Mounting Wall Thickness 1.3-3.2 mm
• Spare Parts Filter Media M13FPF-EU3
• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Airflow Direction Reverse
• Electrical Connection Screwless Terminal Block
• Life Expectancy 100000 h at 25 °C
• Wires Section 20-14 AWG
• Wires Section 0.75-2.5 mm²
• Fan Noise 40/44 dB(A)
• Filter Class ISO coarse 55% ISO 16890
• Filter Class G3 EN 779
• Filter Material thermo-linked progressive structure synthetic fibre
• IP Protection Degree IP54
• Operating Temperature -10÷55 °C
• Storage Temperature -40÷70 °C
• UL Ambient Temperature 55 °C

Dimensions of FF13PA230UNR: 204mm (w) x 204mm (h) x 87mm (d)
