TP19U115B Plastic Roof Exhaust Fan Unit 115V AC 500m³/h IP24 RAL 7035
SKU
TP19U115B
Buy 5 for
£172.10
each and save 5%
£181.16
Lead time variable - contact us on 01782 349 430
| SKU | TP19U115B |
|---|---|
| Lead Times | variable - contact us on 01782 349 430 |
| Manufacturer | FANDISEU |
| Rated Voltage | 115V.a.c. |
| Max Air Flow (50Hz) | 500(m³/h) |
| Roof Type | TP Series (Plastic) |
Description

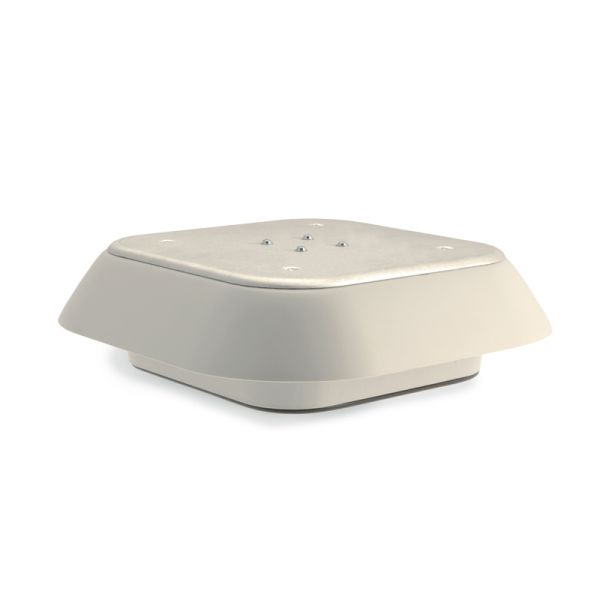

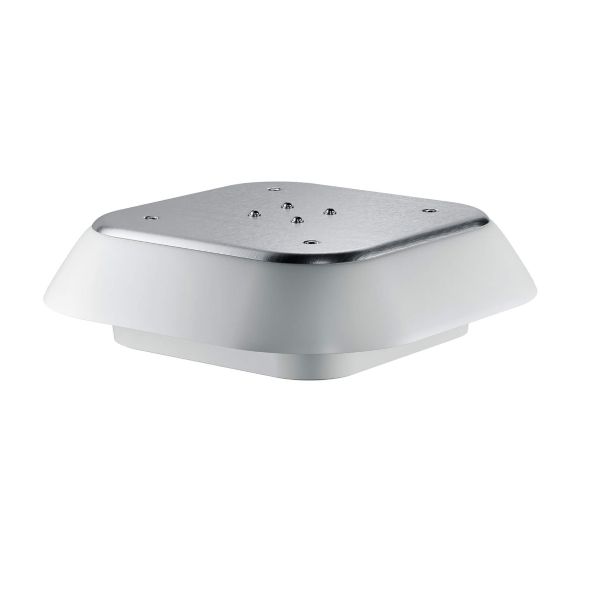

The 'TP' series of roof units from Axair is designed to dissipate hot air extracted from the top of enclosures.
Key Features of the TP19U115B:
- Aluminium (ABS) & Plastic (PC) casing
- Adhesive sealing gasket supplied
- IP24 Ingress Protection
- Available in RAL 7035
- Suitable for operation at 60Hz
- 115V 50Hz Frequency
- Input Power: 78Watt
- Current: 680mA
- Max Airflow Point 1: 530m3/h
- Max Airflow Point 2: 480 (when used with exhaust filter FPF20KRG)
- Max Pressure: 330Pa
- Sound Level: 59 dB(A)
- Weight: 2Kg
- Temperature range: -10 to +60
Dimensions:
