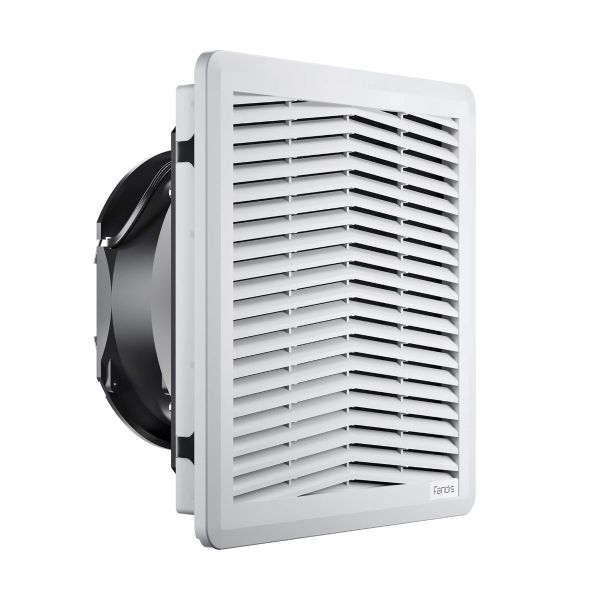

FF15A115UN2 Fandis Filter Fan Unit 115V AC 226m³/h Standard Airflow. Fits Cut Out 223x223mm. RAL 7035

The Fandis FF15A115UN2 is a 115V AC filter fan unit designed to protect electronic components by delivering up to 226m³/h of airflow (at 50Hz) to electrical control panels, cabinets and enclosures.

Designed for easy installation, it features a screwless electrical connection and a fast, tool-free mounting system, with a panel cut-out size of 223x223mm. The Fandis FF filter fan series offers a wide range of configurations for indoor and outdoor applications.

Technical data:

• Airflow with Exhaust Filter 165/204 m³/h
• Rated Current 0.36/0.361 A
• Operating Voltage 103-126 V a.c.
• Frequency 50/60 Hz
• Appliance Class I
• Motor Protection Thermally Protected
• Mounting Wall Thickness 1.3-3.7 mm
• Spare Parts Filter Media M15FPF-EU3
• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Airflow Direction Direct
• Electrical Connection Screwless Terminal Block
• Life Expectancy 100000 h at 25 °C
• Wires Section 0.75-2.5 mm²
• Wires Section 20-14 AWG
• Fan Noise 52/56 dB(A)
• Filter Class G3 EN 779
• Filter Class ISO coarse 55% ISO 16890
• Filter Material thermo-linked progressive structure synthetic fibre
• IP Protection Degree IP54
• Operating Temperature -10÷55 °C
• Storage Temperature -40÷70 °C
• UL Ambient Temperature 55 °C

Dimensions of FF15A115UN2: 250mm (w) x 250mm (h) x 104mm (d)

EMC versions are available on request.
