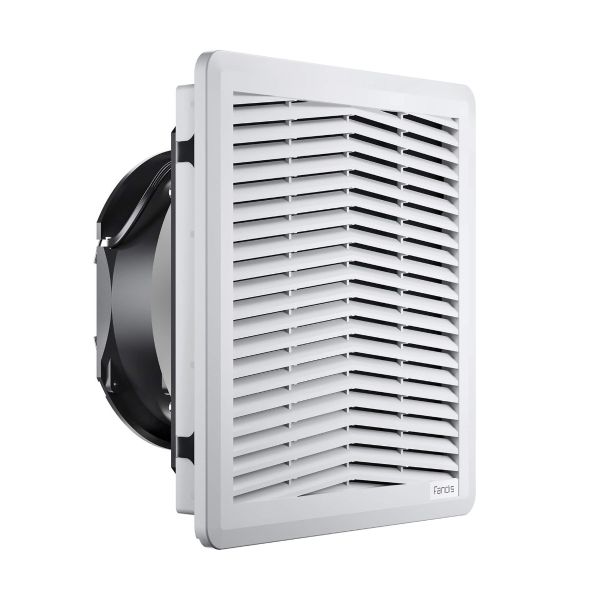

FF15A230UFR Fandis Filter Fan Unit 230V AC 240m³/h Reverse Airflow. Fits Cut Out 223x223mm. RAL 7035
SKU
FF15A230UFR
Buy 10 for
£129.28
each and save 5%
£136.08
| SKU | FF15A230UFR |
|---|---|
| Manufacturer | FANDISEU |
| Voltage | 230V.a.c |
| Cut Out Size | 223x223mm |
| EMC Shielded | No |
| Airflow Range (50Hz) | 100 to 250m³/h |
| Max Air Flow (50Hz) | 240(m³/h) |
| Airflow Direction | Reverse (Blow Out) |
Description
Specially designed for electronic cooling inside control panels and enclosures, the FF range of filter fan units feature a screwless connection with a fast tool-free mounting system. Available in a wide range of configurations for both indoor and outdoor use.
Technical data
Dimensions of FF15A230UFR:
Standard Filter Fan Size: 250mm (w) x 250mm (h) x 116mm (d)
| Rated Voltage | 230Va.c |
| Rated Power (50/60Hz) | 32/36 |
| Max Air Flow (m3/h) | 240/285 |
| Static Pressure (50/60Hz) | 164/210 |
| Noise (50/60Hz) (dB(A)) | 50/55 |
EMC versions are available on request.
