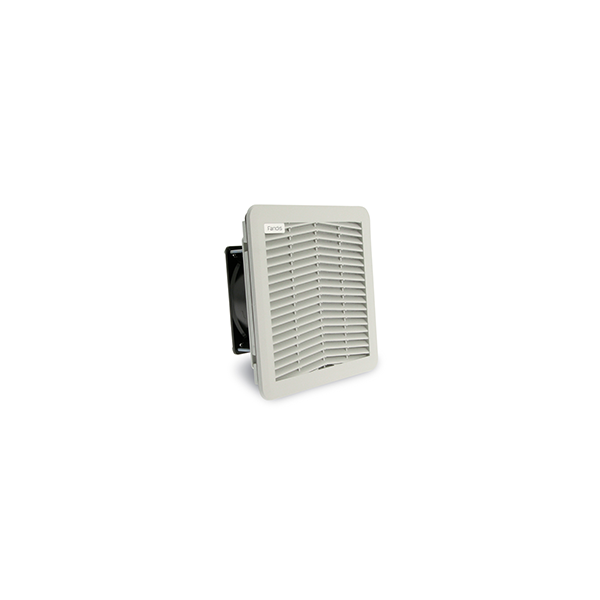

FPF13KPUD24BR-110 Fandis Filter Fan Unit 24V DC 120m³/h Reverse Airflow. Fits Cut Out 177x177mm. RAL 7035

FPF13KPUD24BR-110 Fandis Filter Fan Unit 24V DC 120m³/h Reverse Airflow. Fits Cut Out 177x177mm. RAL 7035

SKU
FPF13KPUD24BR-110
Buy 20 for £77.27 each and save 5%
View Downloads
SKU FPF13KPUD24BR-110
Manufacturer FANDISEU
Voltage 24Vd.c.
Cut Out Size 177x177mm
EMC Shielded No
Airflow Range (50Hz) 100 to 250m³/h
Max Air Flow (50Hz) 120(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 0.77kg
  • Temperature Range -10 to +50

Dimensions of the FPF13KPUD24BR-110:

Standard Filter Fan Size: 204mm (w) x 204mm (h) x 98mm (d)


The FPF13KPUD24BR-110 is a great solution to enclosure cooling. This model is the reverse airflow version of this model. This filter fan unit is IP54 due to the polyurethane foam permanent sealing gasket and IP55 available on request. The FPF13KPUD24BR-110 contains G3 filter media  but G4 media is available on request. All our filter medias are reusable and can be reused by beating, washing and drying. The filter medias can be washed several times times due to the fact they are made from a thermos-linked progressive structure synthetic fiber. The filter fan units plastic parts are made from ABS and PC alloy and have a plate thickness of between 1.5 and 2.2mm. The FPF13KPUD24BR-110 is CE, cURus and CSA approved as well as UL approved according to UL 508.  The units compact, low profile side mount can be extended using an adaptor. It can sit flush to the enclosure with the unit enclosed in the cabinet or, alternatively, pushed out by using an adaptor to extend its external profile giving more space inside the enclosure. Fitting the FPF13KPUD24BR-110with or without an adaptor is simple as it features click fit mounting making installation fast and easy. This filter fan unit contains shielded ball bearings.


Dimension 204x204x98mm
Rated Voltage 24Vd.c
Rated Power (50/60Hz) 9.6
Max Air Flow (m3/h) 120
Static Pressure (50/60Hz) 63
Noise (50/60Hz) (dB(A)) 42.5
Bearing Type Ball



We recommend using FPF13 filter fans alongside the FPF13KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
