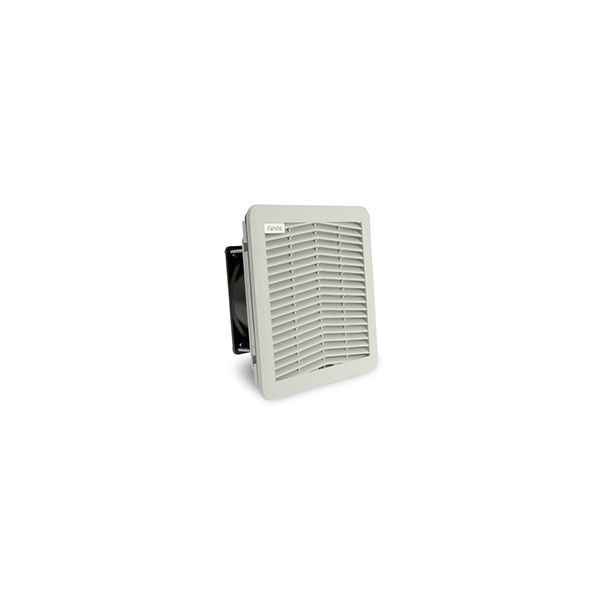

FPF13KU115BE-110 Fandis Filter Fan Unit 115V AC 120m³/h Standard Airflow. Fits Cut Out 177x177mm

FPF13KU115BE-110 Fandis Filter Fan Unit 115V AC 120m³/h Standard Airflow. Fits Cut Out 177x177mm

FPF13KU115BE-110 Fandis Filter Fan Unit, 115V, 120m³/h, Standard Airflow, RAL 7035, Outer Dims: 204 x 204mm, Fits Cut Out: 177 x 177mm, IP54, G3 Media, -10 ~ +50°C Rated Temp Range

In stock

SKU FPF13KU115BE-110
  • Buy 20 for £62.48 each and save 5%

Description / FPF13KU115BE-110 Fandis Filter Fan Unit 115V AC 120m³/h Standard Airflow. Fits Cut Out 177x177mm

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 1.11kg

Dimensions of FPF13KU115BE-110:

Standard Filter Fan Size: 204mm (w) x 204mm (h) x 98mm (d)

The FPF13KU115BE-110 is a great solution to climate control. This fan filter unit is the standard airflow version of this model and is IP54. This is down to its polyurethane foam permanent sealing gasket .IP55 is available on request as well as an EMC version, Type1, and 3R. G3 filter media is provided in the FPF13KU115BE-110 however G4 media is available on request. All our filter medias are reusable and can be reused by washing, beating and blow drying. They can be washed up to 10 times as they are made from a thermos-linked progressive structure synthetic fibre. .Its compact, low profile side mount can be amended using an adaptor. It can sit flat to the enclosure with the unit encased in the cabinet or, alternatively, pushed out by using an adaptor to extend its external profile providing more space inside the enclosure. Fitting the FPF13KU115BE-110 with or without an adaptor is simple as it features click fit mounting allowing for easy, fast installation. This filter fan unit contains shielded ball bearings. The filter fan unit comes with a plate thickness of between 1.5 and 2.2mm and the plastic parts are made from ABS and PC alloy. The FPF13KU115BE-110 is CE, cURus and CSA approved as well as UL approved according to UL 508.

Dimension 204x204x98mm
Rated Voltage 115Va.c
Rated Power (50/60Hz) 22/20
Max Air Flow (m3/h) 120/135
Static Pressure (50/60Hz) 84/100
Noise (50/60Hz) (dB(A)) 3346.0/50.0
Bearing Type Ball



View the datasheet



We recommend using FPF13 filter fans alongside the FPF13KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.



More Information

Product NumberFANDISEU
Max Air Flow (50Hz)120(m³/h)
Airflow DirectionStandard (Suck In)
