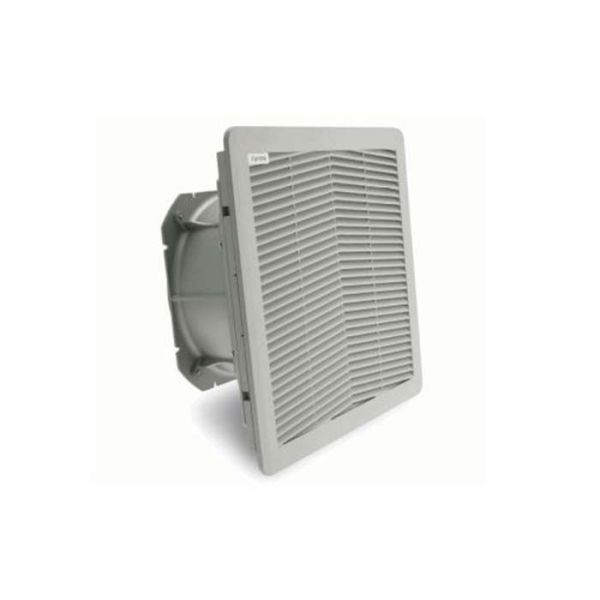

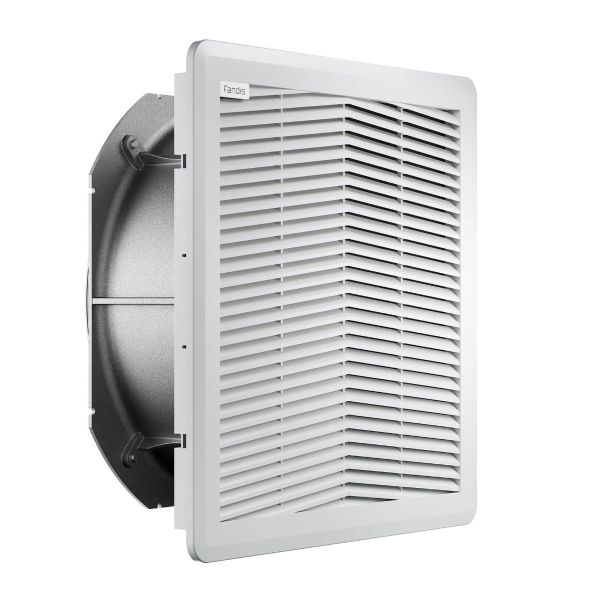

FPF20KEU230BER-120 Fandis Filter Fan Unit 230V AC 520m³/h Reverse Airflow. Fits Cut Out 291x291mm. RAL 7035

FPF20KEU230BER-120 Fandis Filter Fan Unit 230V AC 520m³/h Reverse Airflow. Fits Cut Out 291x291mm. RAL 7035

SKU
FPF20KEU230BER-120
Buy 4 for £154.33 each and save 5%
Lead time variable - contact us on 01782 349 430
View Downloads
SKU FPF20KEU230BER-120
Lead Times variable - contact us on 01782 349 430
Manufacturer FANDISEU
Voltage 230V.a.c
Cut Out Size 291x291mm
EMC Shielded No
Airflow Range (50Hz) >501m³/h
Max Air Flow (50Hz) 520(m³/h)
Airflow Direction Reverse (Blow Out)

Description

Specially designed for control panels and enclosures, the FPF range of filter fan units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gaskets for dust and water protection

Standard Specifications of Filter Fan Units:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media supplied
  • IP54 rated
  • CSA approved
  • Shielded ball bearing fans
  • Suitable for operation at 60Hz
  • 3.62kg
  • Temperature Range -10 to +50

Dimensions of FPF20KEU230BER-120:

Standard Filter Fan Size: 325mm (w) x 325mm (h) x 161mm (d)


We recommend using FPF20 filter fans alongside the FPF20KUG-100 air inlet/exhaust to allow the air to move freely through the enclosure.
