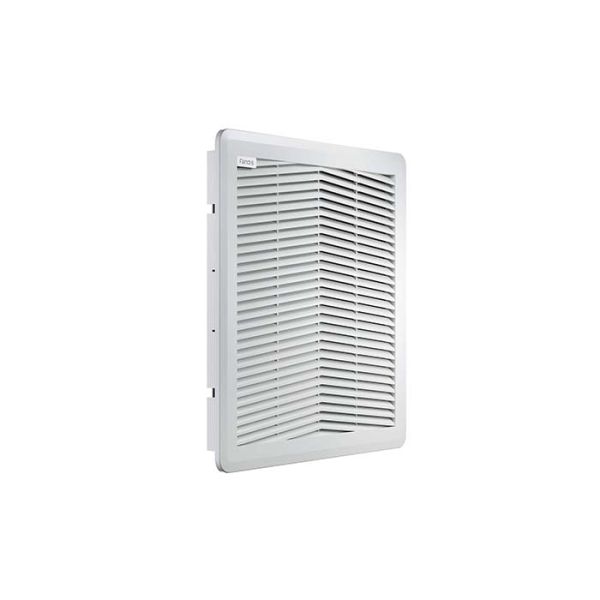

FPF20KUG-100 Fandis Exhaust Filter to Fit Cut Out 291x291mm. RAL 7035

FPF20KUG-100 Fandis Exhaust Filter to Fit Cut Out 291x291mm. RAL 7035

SKU
FPF20KUG-100
Buy 16 for £29.04 each and save 5%
View Downloads
Lead Times variable - contact us on 01782 349 430
Manufacturer FANDISEU
Cut Out Size 291x291mm
EMC Shielded No
IP Rating IP54

Description

Specially designed for control panels and enclosures, the FPF range of exhaust filter units offer:

  • Compact sizes and low external profile
  • Fast mounting thanks to plastic elastic hooks
  • Integrated sealing gasketts for dust and water protection

Standard Specifications of Exhaust Filter:

  • Mounting without screws in square openings, tolerance range of 1.5mm
  • Possible fixing with V-shaped head screws (not supplied)
  • Standard RAL 7035 colour
  • Washable filter media available here
  • IP54 rated
  • CSA approved
  • Also available as full unit with supplied fan

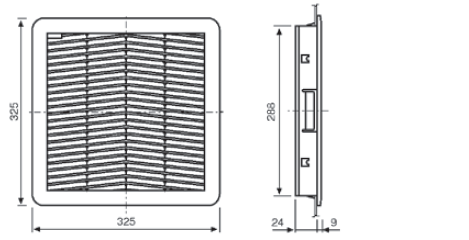

Dimensions of FPF20KUG-100 Exhaust Filter:

The FPF20KUG-100 exhaust filter facilitates effective use of a filter fan unit when either delivering or exhausting air from a cabinet. The Click fit mount feature comes as standard throughout the range, which provides fast, easy mounting thanks to its elastic hooks, this means no need for tools or gadgets to install. The plastic parts are made of PC/ABS alloy. The FPF20KUG-100 comes with a permanent sealing gasket in polyurethane foam for dust and water protection making it IP54 and is compact with a plate thickness range of 1.5mm. The filter media provided is G3 rated as standard but can be upgraded to G4 upon request. The filter media in thermos-linked progressive structure synthetic fiber can be washed up to 10 times and reused. The exhaust filter/inlet can be fitted for a low external profile, or if more space inside the enclosure is needed an adapter can be used giving the unit more space inside extending the fan filter units external profile. The FPF20KUG-100 comes as standard in colour RAL 7035, but is available in 4 other colours on request. The enclosure exhaust is UL approved as well as CE, cURus and CSA approved. IP55, 3R, Type1 and EMC versions are also available on request. The Exhaust / inlet is also available as a full unit with a supplied fan from the range selected to meet requirements.


FPF20 Exhaust Filter
