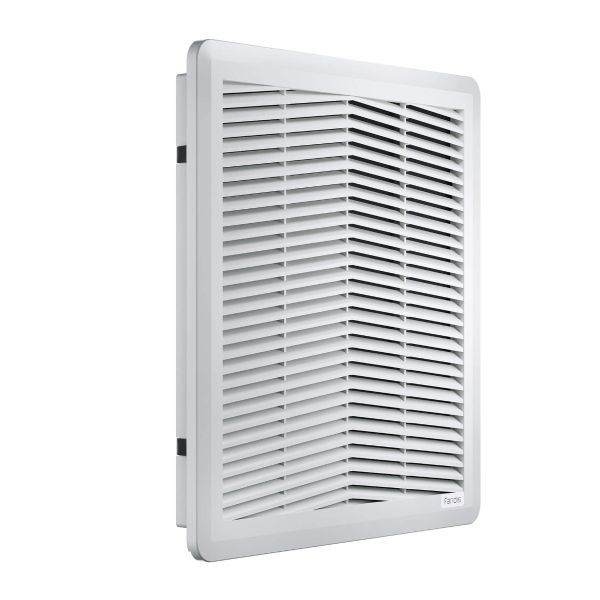

FF20U Fandis Exhaust Filter to Fit Cut Out 291x291mm. RAL 7035

The Fandis FF20U exhaust filter provides efficient filtered ventilation for electrical control panels, industrial enclosures and electrical cabinets. Designed to help dissipate heat while protecting internal components from dust and contaminants, it supports effective thermal management in electrical equipment. The filter is designed for installation in a 291 × 291 mm panel cut-out.

Featuring a screwless electrical connection and a quick, tool-free clip-on mounting system with a sliding cover, the FF20U enables straightforward installation and easy filter replacement, helping to minimise maintenance time.

The Fandis FF exhaust filter range offers a wide selection of filter configurations for indoor and outdoor applications. With practical installation features and easy maintenance, the range provides versatile ventilation options for a variety of electrical enclosure requirements.

FF20U Exhaust Filter Technical data:

• Mounting Wall Thickness 1.3-3.7 mm
• Spare Parts Filter Media M20FPF-EU3
• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Filter Class ISO coarse 55% ISO 16890
• Filter Class G3 EN 779
• Filter Material thermo-linked progressive structure synthetic fibre
• IP Protection Degree IP54
• Operating Temperature -30÷60 °C
• Storage Temperature -40÷70 °C
• UL Ambient Temperature 60 °C

Dimensions of the FF20U: 325mm (w) x 325mm (h) x 25mm (d)

The FF20U exhaust filter facilitates effective use of a filter fan unit when either delivering or exhausting air from an enclosure. EMC versions are available on request.
