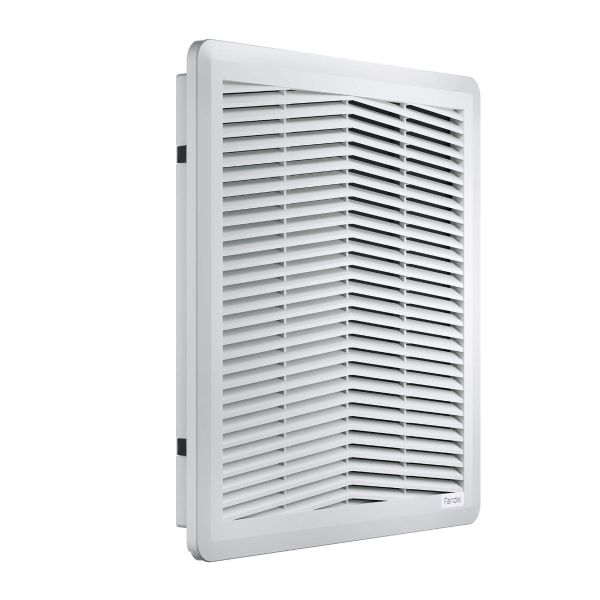

FF20U5 Fandis Exhaust Filter IP55 to Fit Cut Out 291x291mm. RAL 7035

The Fandis FF20U5 exhaust filter provides efficient filtered ventilation for electrical control panels, industrial enclosures and electrical cabinets. Designed to help dissipate heat while helping protect internal components from dust and contaminants, it supports effective thermal management and reliable equipment operation. Its IP55 protection rating offers enhanced protection against dust ingress and water jets. The filter is designed for installation in a 291 × 291 mm panel cut-out.

Featuring a screwless electrical connection and a quick, tool-free clip-on mounting system with a sliding cover, the FF20U5 enables straightforward installation and easy filter replacement, helping to minimise maintenance time and effort.

The Fandis FF exhaust filter range offers a wide selection of filter configurations for indoor and outdoor applications. With practical installation features and easy maintenance, the range provides versatile ventilation options for a variety of electrical enclosure requirements.

FF20U5 Exhaust Filter Technical data:

• Mounting Wall Thickness 1.3-3.7 mm
• Spare Parts Filter Media M20FPF
• Casing Material PC/ABS UL94 V-0
• RAL Number 7035
• Filter Class ISO coarse 75% ISO 16890
• Filter Class G4 EN 779
• Filter Material thermo-linked progressive structure synthetic fibre
• IP Protection Degree IP55
• Operating Temperature -30÷60 °C
• Storage Temperature -40÷70 °C
• UL Ambient Temperature 60 °C

Dimensions of FF20U5: 325mm (w) x 325mm (h) x 25mm (d)

The FF20U5 exhaust filter facilitates effective use of a filter fan unit when either delivering or exhausting air from an enclosure. EMC versions are available on request.
